Parking Brake Switch: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

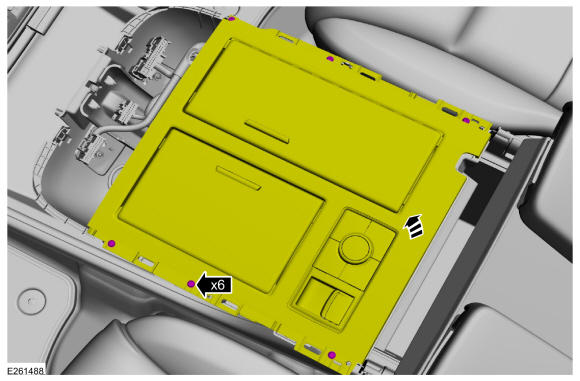

- Remove the HVAC control module. Refer to: Heating, Ventilation and Air Conditioning (HVAC) Control Module .

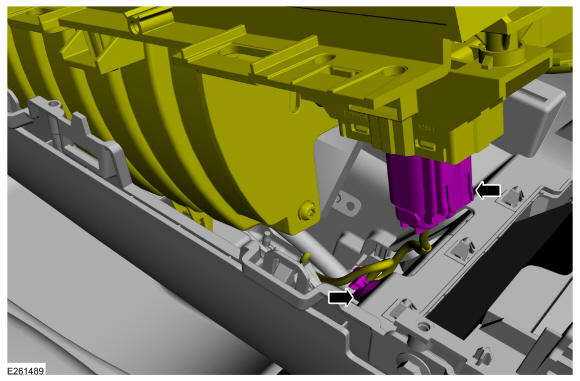

- Disconnect the EPB switch electrical connector and detach the wiring retainer.

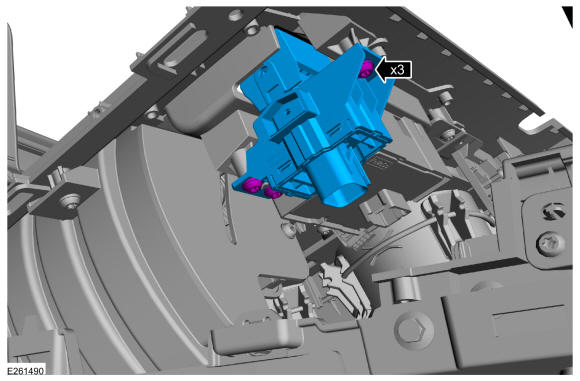

- Remove the screws and the EPB switch.
Torque: 9 lb.in (1 Nm)
