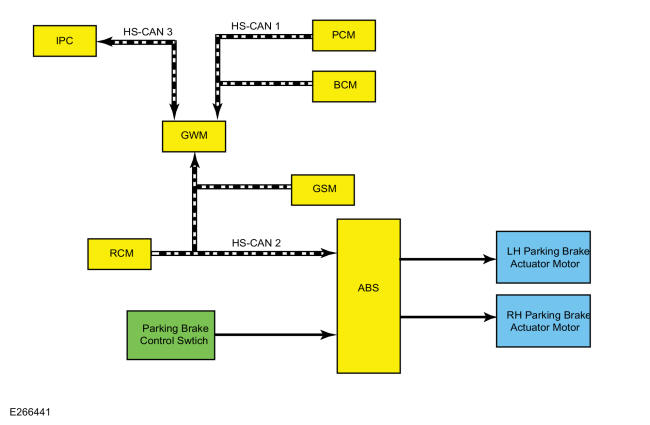

System Diagram
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
ABS |
| 2 |
HS-CAN 2 |
| 3 |
HS-CAN 1 |
| 4 |
HS-CAN 3 |
| 5 |
LH Parking Brake Actuator Motor |
| 6 |
GWM |
| 7 |
RCM |
| 8 |
PCM |
| 9 |
BCM |
| 10 |
GSM |
| 11 |
IPC |
| 12 |
Parking Brake Control Switch |
| 13 |
RH Parking Brake Actuator Motor |
