Front Brake Flexible Hose: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

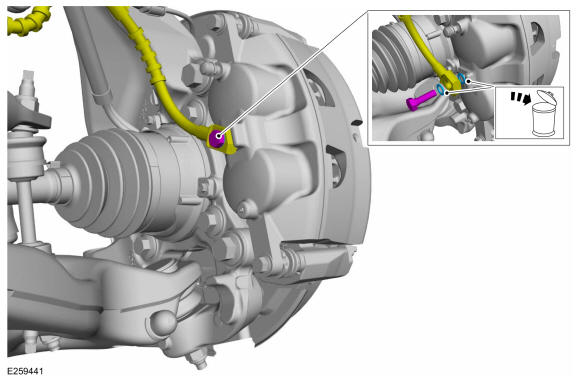

Remove the bolt and disconnect the brake hose. Discard the washers.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

Rear wheel drive (RWD) vehicles

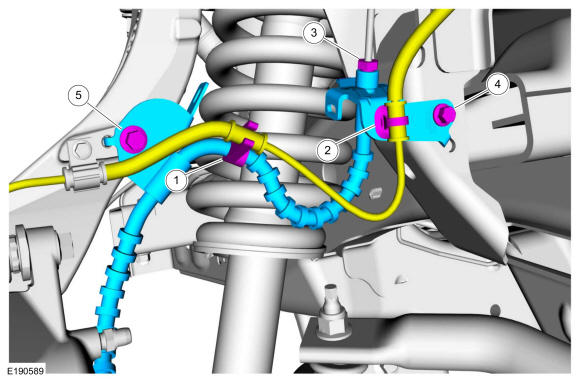

1. Unclip the wheel speed sensor harness from the brake hose.
2. Detach the wheel speed sensor wiring retainer.
3. Disconnect the brake tube fitting.
  Torque: 177 lb.in (20 Nm)
4. Remove the brake hose bracket bolt.
  Torque: 22 lb.ft (30 Nm)
5. Remove the brake hose bracket bolt and the brake hose.
  Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY

Four wheel drive (4x4) vehicles

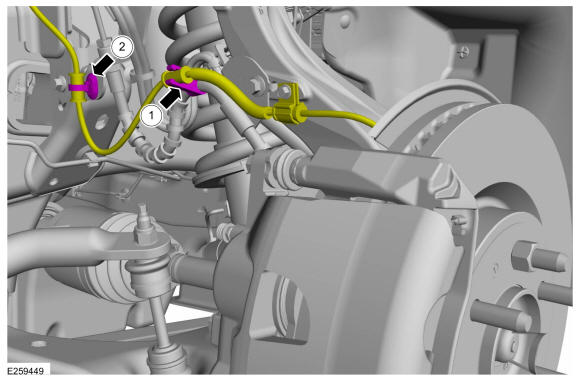

1. Unclip the wheel speed sensor harness from the brake hose.
2. Detach the wheel speed sensor harness retainer.
Courtesy of FORD MOTOR COMPANY

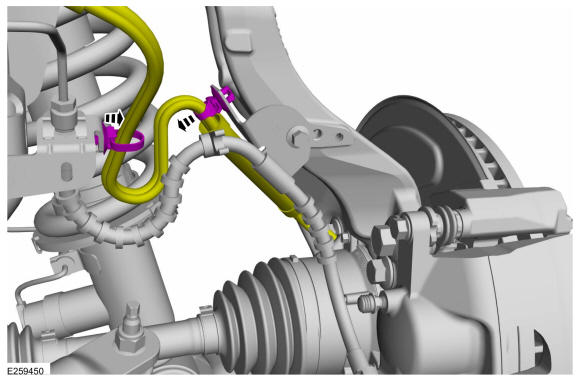

Detach the vacuum hose retainers and position aside the vacuum hose.

Courtesy of FORD MOTOR COMPANY

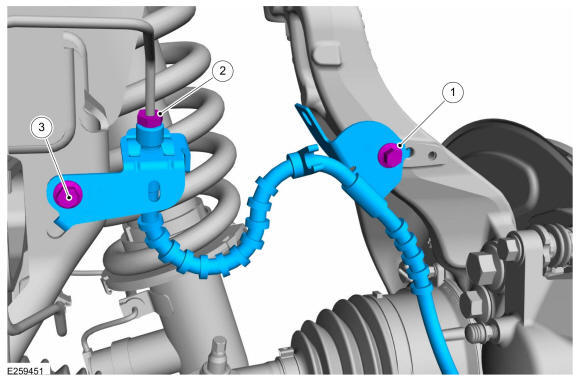

1. Remove the brake hose bracket bolt and the brake hose.
  Torque: 22 lb.ft (30 Nm)
2. Disconnect the brake tube fitting.
  Torque: 177 lb.in (20 Nm)
3. Remove the brake hose bracket bolt.
  Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
