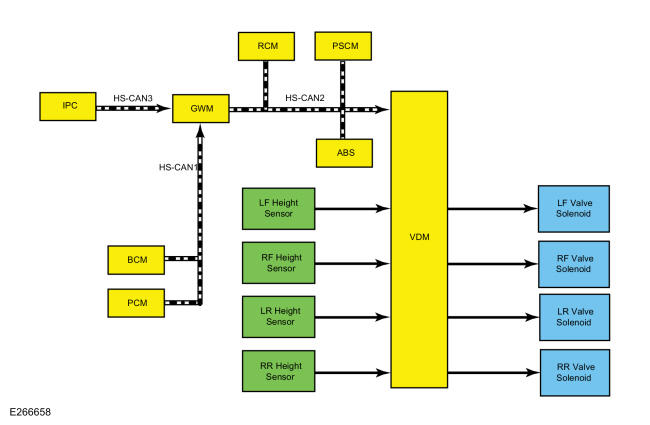

System Diagram
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
HS-CAN2 |
| 2 |
HS-CAN1 |
| 3 |
HS-CAN3 |
| 4 |
LF Valve Solenoid |
| 5 |
PSCM |
| 6 |
PCM |
| 7 |
ABS |
| 8 |
LF Height Sensor |
| 9 |
RF Height Sensor |
| 10 |
LR Height Sensor |
| 11 |
RR Height Sensor |
| 12 |
VDM |
| 13 |
RF Valve Solenoid |
| 14 |
LR Valve Solenoid |
| 15 |
RR Valve Solenoid |
| 16 |
IPC |
| 17 |
RCM |
| 18 |
GWM |
| 19 |
BCM |
