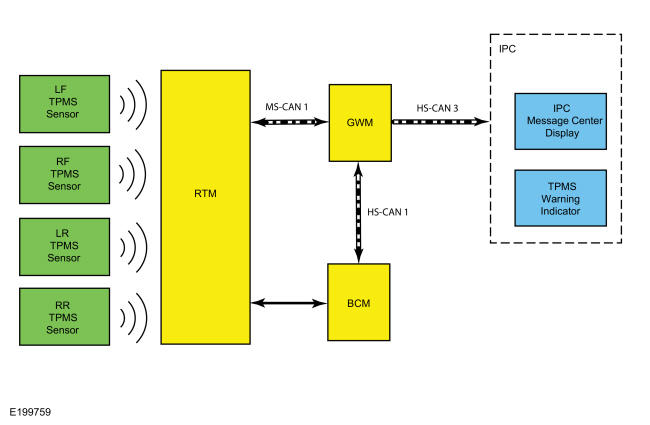

System Diagram
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
IPC |
| 2 |
BCM |
| 3 |
IPC message center display |
| 4 |
TPMS warning indicator |
| 5 |
LH front TPMS sensor |
| 6 |
RH front TPMS sensor |
| 7 |
LH rear TPMS sensor |
| 8 |
RH rear TPMS sensor |
| 9 |
RTM |
| 10 |
GWM |
