Tire Pressure Monitoring System (TPMS) - Component Location

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

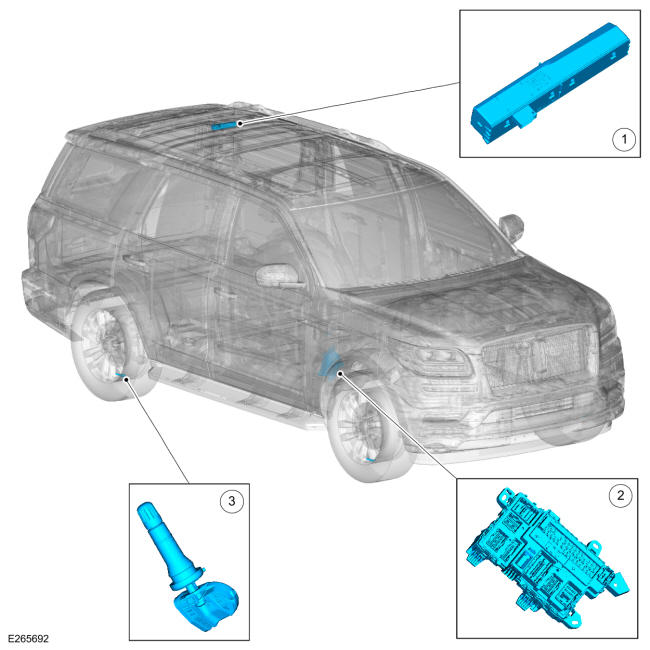

GFD271612Courtesy of FORD MOTOR COMPANY
Item Description
1 RTM
2 BCM
3 TPMS sensor assembly (4 required)
