Wheel Knuckle: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

Remove the rear wheel bearing and wheel hub. Refer to: Wheel Bearing and Wheel Hub .
Remove the 3 bolts and the brake disc shield.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with dynamic suspension.

Remove the ride height sensor arm bracket bolt and position the bracket aside.

Courtesy of FORD MOTOR COMPANY

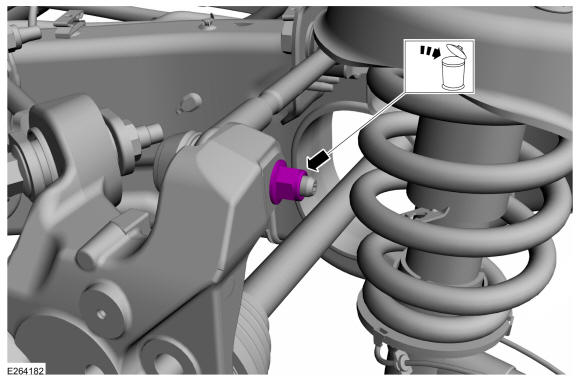

Remove and discard the upper arm-to-wheel knuckle nut.

Courtesy of FORD MOTOR COMPANY

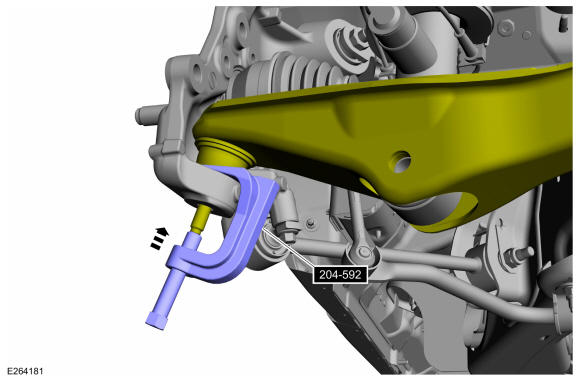

Separate the upper ball joint from the wheel knuckle. Use Special Service Tool: 204-592/1 Adapter for 204-592.

Courtesy of FORD MOTOR COMPANY
Remove and discard the lower ball joint nut.

Courtesy of FORD MOTOR COMPANY

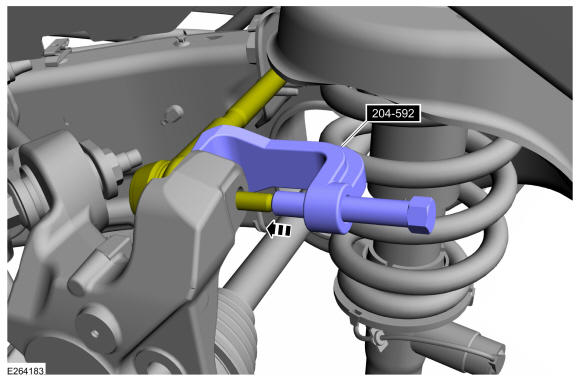

Separate the lower ball joint from the wheel knuckle. Use Special Service Tool: 204-592/1 Adapter for 204-592.

Courtesy of FORD MOTOR COMPANY

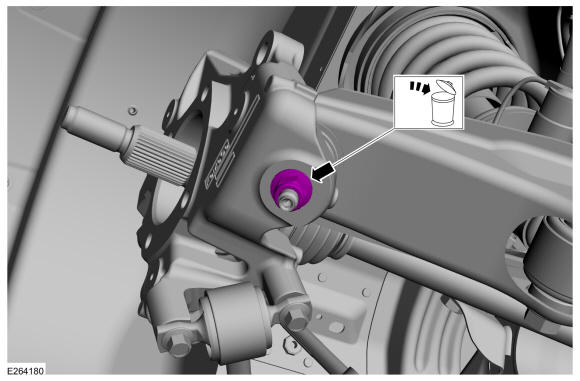

Remove and discard the bolt and disconnect the toe link from the wheel knuckle.

Courtesy of FORD MOTOR COMPANY
NOTE: Use the hex-holding feature to prevent the stud from turning while removing the nut.

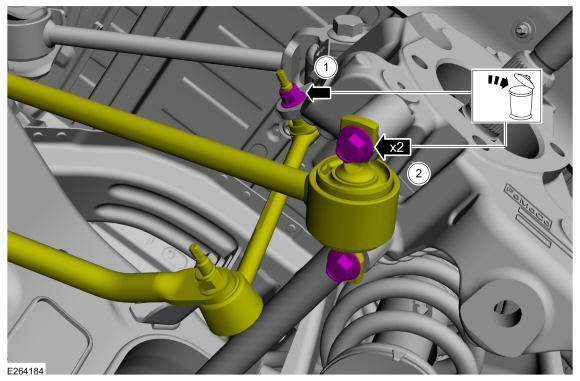

1. Remove and discard the 2 bolts and disconnect the lower trailing arm from the wheel knuckle.
2. Using the hex-holding feature, remove and discard the stabilizer bar link nut and disconnect the link from the wheel knuckle.
Courtesy of FORD MOTOR COMPANY

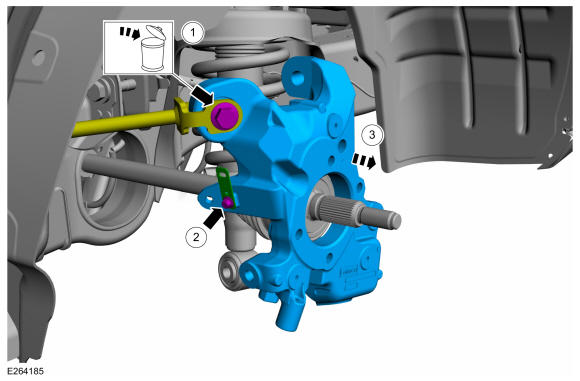

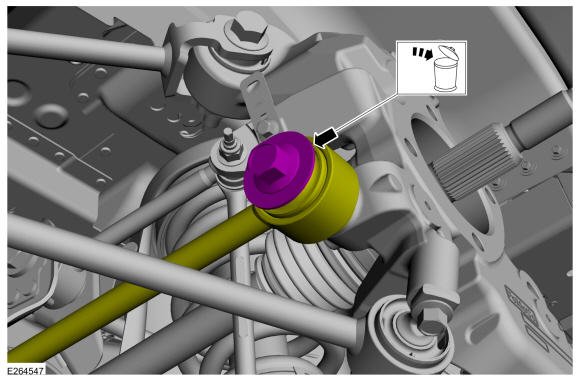

1. Remove and discard the upper trailing arm-to-wheel knuckle bolt and position the upper trailing arm.
2. Remove the bracket bolt and the bracket.
3. Remove the wheel knuckle.
