Upper Trailing Arm: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Only tighten the nut and bolts finger tight at this stage.

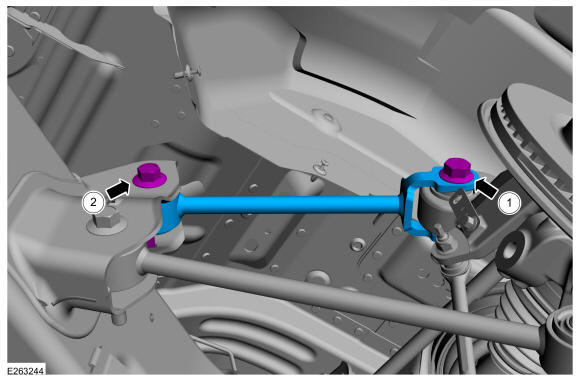

1. Install the new upper trailing arm-to-wheel knuckle bolt.
2. Install the new upper trailing arm-to-frame bolt and flagnut.
Courtesy of FORD MOTOR COMPANY

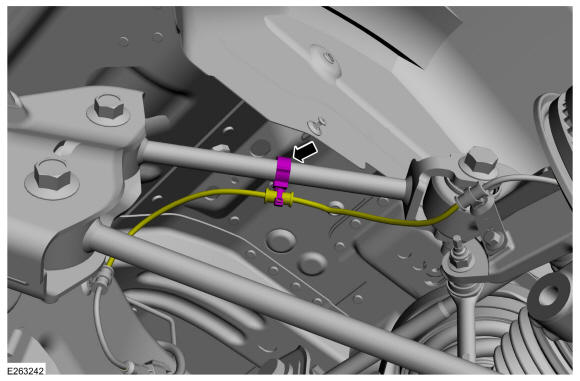

Attach the wiring retainer and the rear wheel speed sensor wire to the upper trailing arm.

Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
Lower the vehicle so that the weight of the vehicle is on the wheel and tire assemblies.

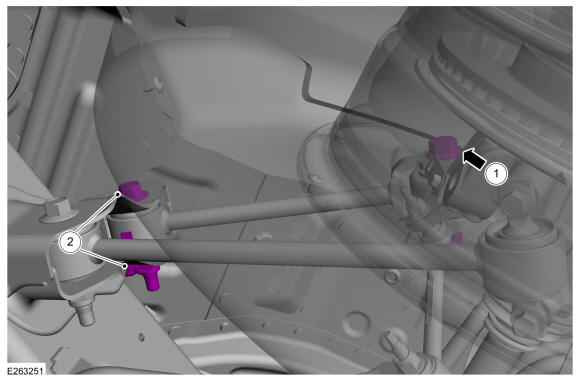

1. Tighten the new upper trailing arm-to-wheel knuckle bolt.
  Torque: 184 lb.ft (250 Nm)
2. Tighten the new upper trailing arm-to-frame bolt and flagnut.
  Torque: 203 lb.ft (275 Nm)

Courtesy of FORD MOTOR COMPANY
