Upper Arm: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
- Remove the wheel and tire. Refer to: Wheel and Tire .

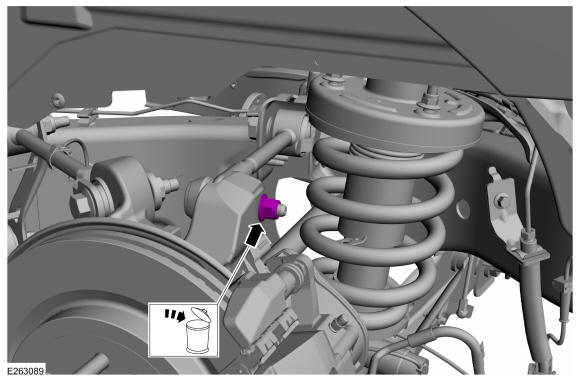

- Remove and discard the upper ball joint nut.
-
NOTE: Be sure not to damage the ball joint boot when installing the Ball Joint Separator.

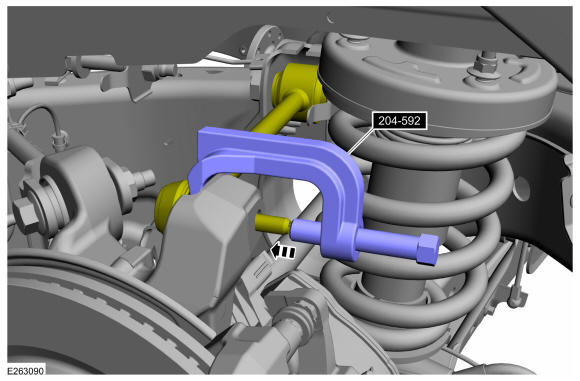

Separate the upper ball joint from the wheel knuckle. Use Special Service Tool: 204-592/1 Adapter for 204-592.

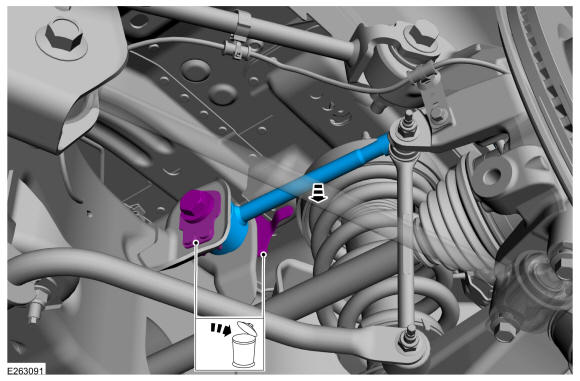

- Remove and discard the upper arm-to-frame bolt, washer, camber set shim and flagnut.
