Rear Stabilizer Bar Link: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
NOTE: Use the hex-holding feature to prevent the stud from turning while removing the nut.

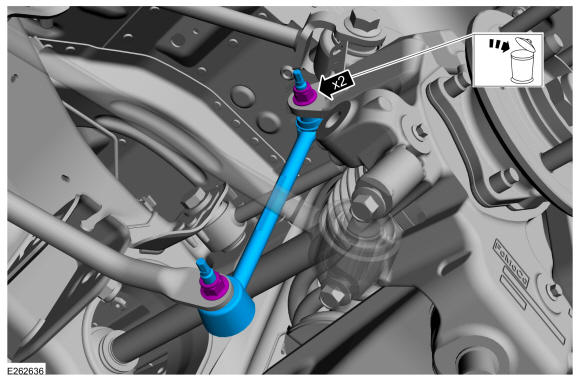

Remove and discard the 2 rear stabilizer bar link nuts and remove the rear stabilizer bar link.

Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
