Lower Trailing Arm: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

Remove the wheel and tire. Refer to: Wheel and Tire .

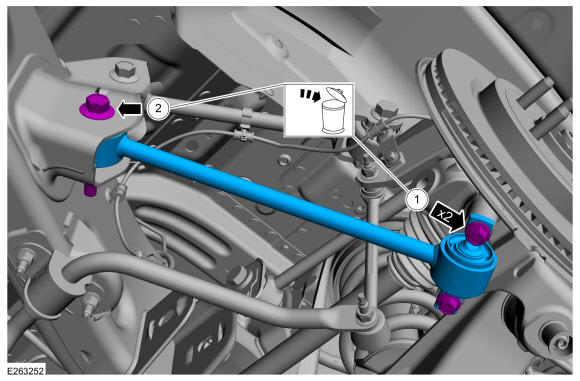

1. Remove and discard the 2 lower trailing arm-to-wheel knuckle bolts.
2. Remove and discard the lower trailing arm-to-frame bolt and flagnut and remove the trailing arm.

Courtesy of FORD MOTOR COMPANY
