Lower Trailing Arm: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Only tighten the nut and bolts finger tight at this stage.

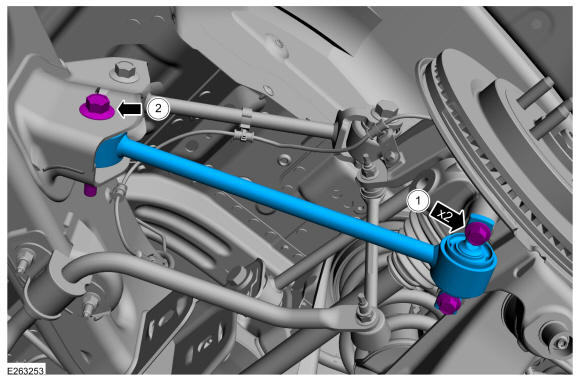

1. Install the 2 new lower trailing arm-to-wheel knuckle bolts.
2. Install the lower trailing arm and install the new lower trailing arm-to-frame bolt and flagnut.
Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
Lower the vehicle so that the weight of the vehicle is on the wheel and tire assemblies.

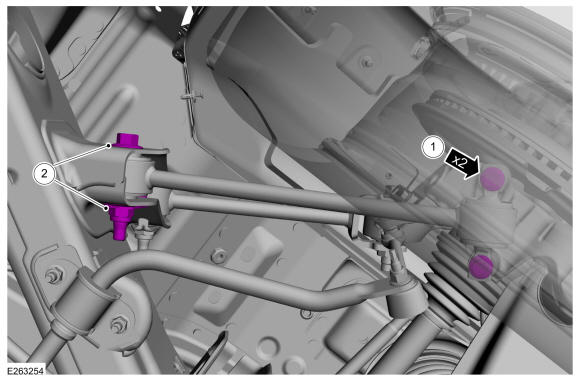

1. Tighten the 2 new lower trailing arm-to-wheel knuckle bolts.
  Torque: 76 lb.ft (103 Nm)
2. Tighten the new lower trailing arm-to-frame bolt and flagnut.
  Torque: 203 lb.ft (275 Nm)

Courtesy of FORD MOTOR COMPANY
