Lower Arm Ball Joint: Installation
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

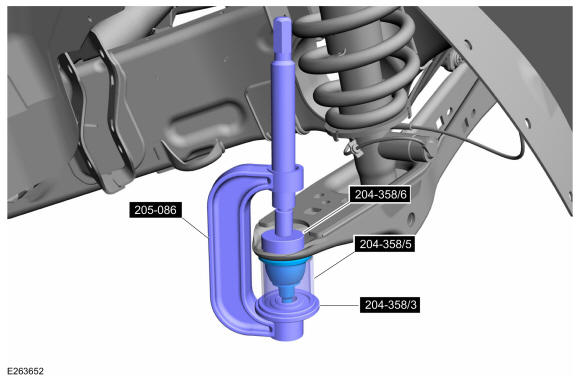

- Install the ball joint into the lower arm. Use Special Service Tool: 205-086-01 Adapter for 205-086 (Bridge Assembly)., 204-358 Remover/Installer, Ball Joint.
-
NOTE: Make sure the ball joint snap ring is fully seated.

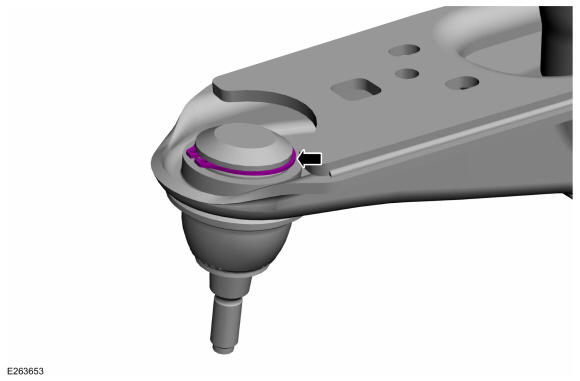

Install the new lower ball joint snap ring.
- Install the wheel knuckle. Refer to: Wheel Knuckle .
