WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

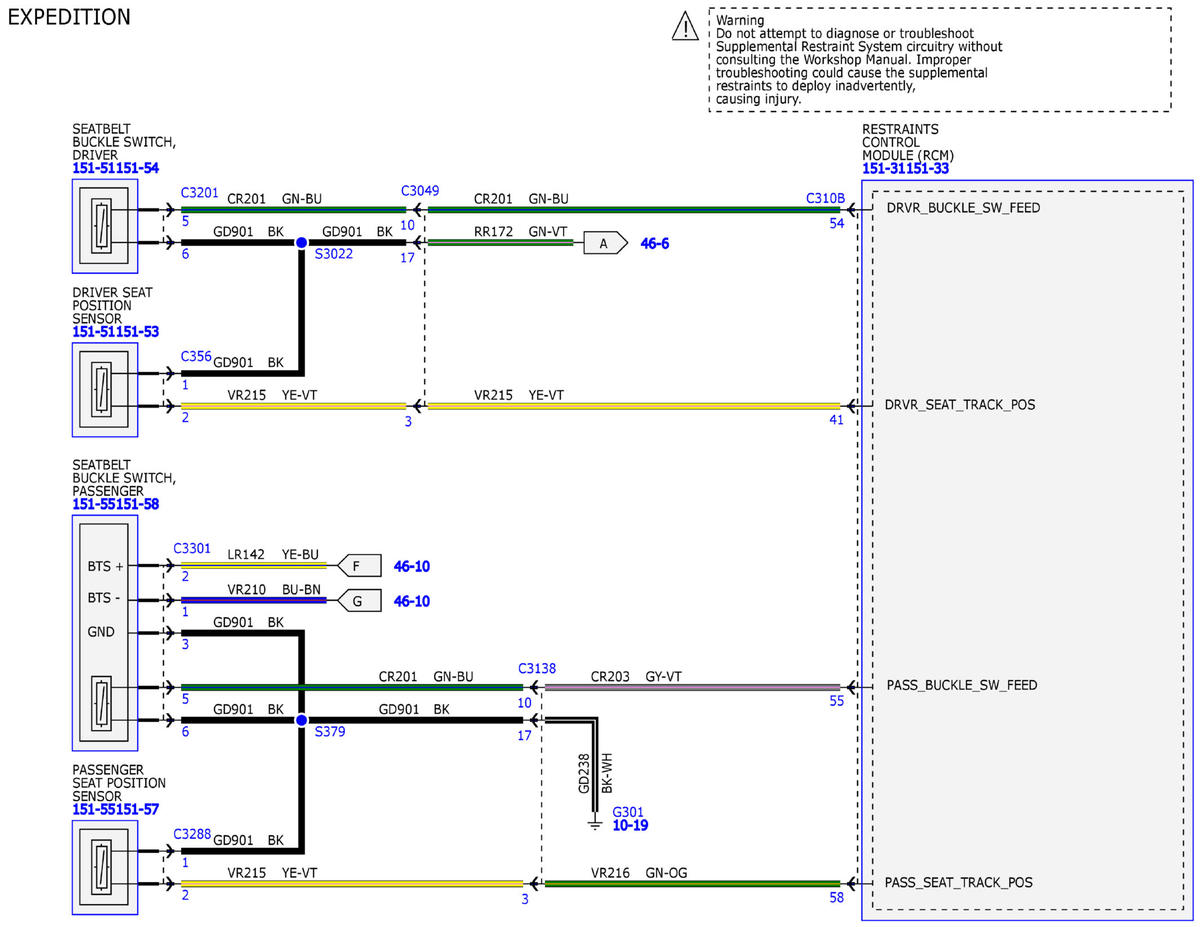

Fig 1: Supplemental Restraint System Wiring Diagram (1 Of 11)
Courtesy of FORD MOTOR COMPANY

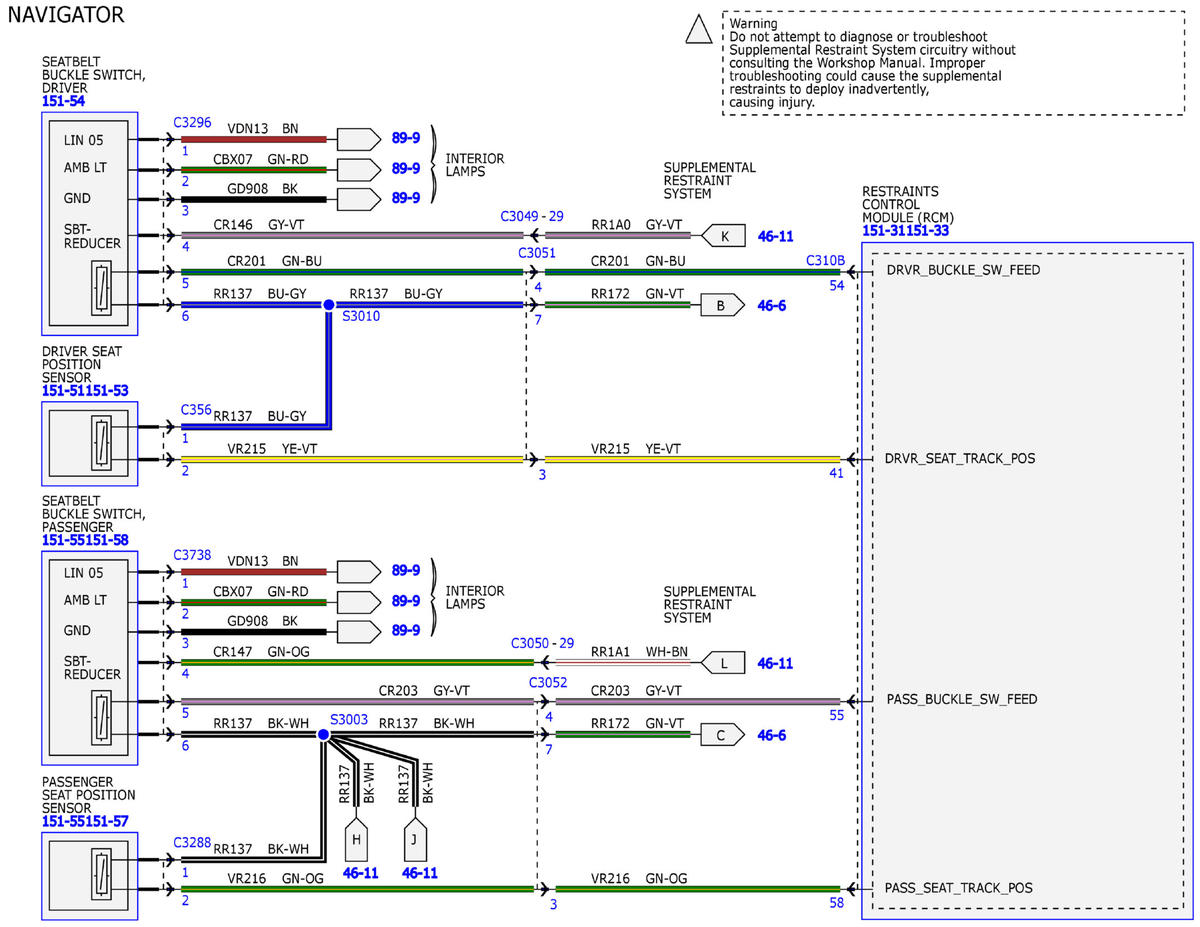

Fig 2: Supplemental Restraint System Wiring Diagram (2 Of 11)
Courtesy of FORD MOTOR COMPANY

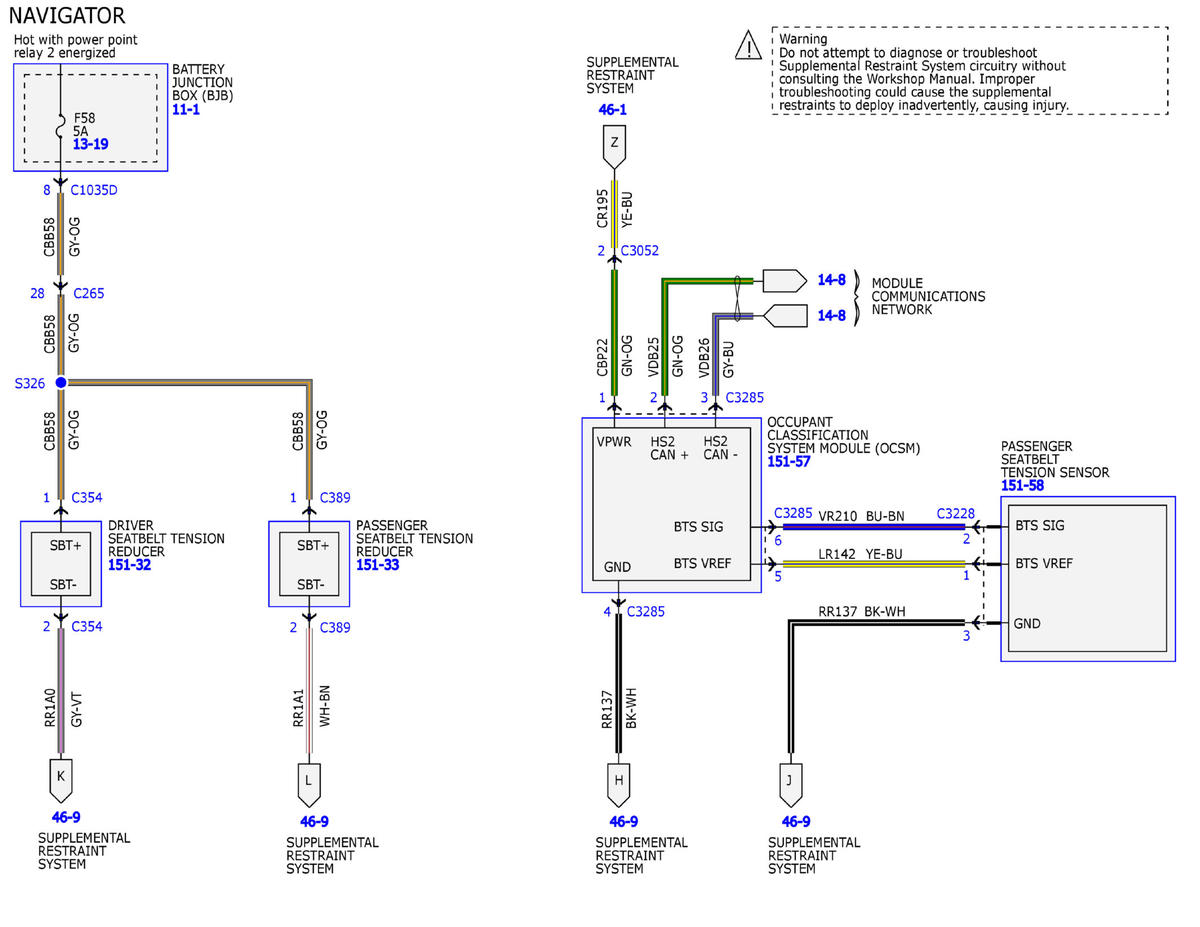

Fig 3: Supplemental Restraint System Wiring Diagram (3 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 4: Supplemental Restraint System Wiring Diagram (4 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 5: Supplemental Restraint System Wiring Diagram (5 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 6: Supplemental Restraint System Wiring Diagram (6 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 7: Supplemental Restraint System Wiring Diagram (7 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 8: Supplemental Restraint System Wiring Diagram (8 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 9: Supplemental Restraint System Wiring Diagram (9 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 10: Supplemental Restraint System Wiring Diagram (10 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 11: Supplemental Restraint System Wiring Diagram (11 Of 11)
