WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

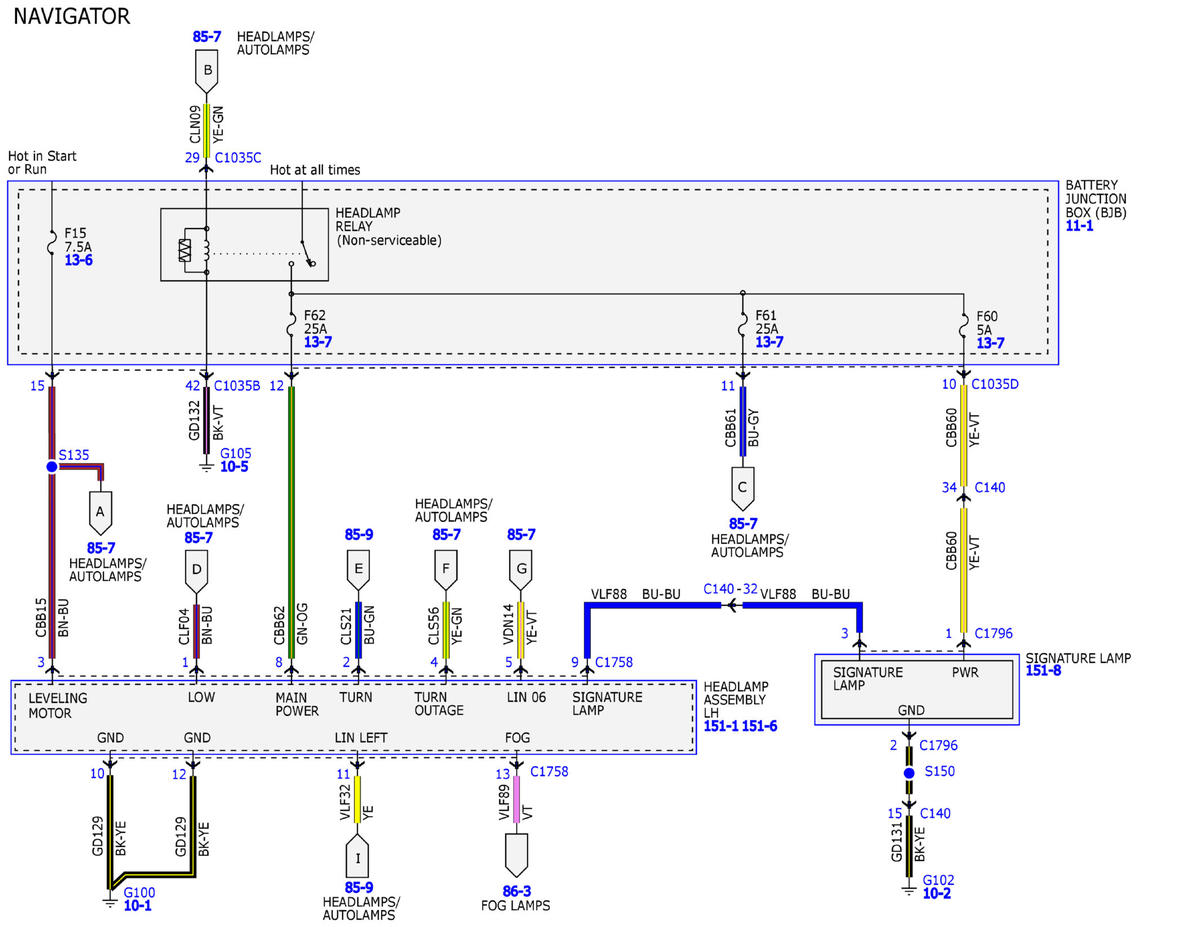

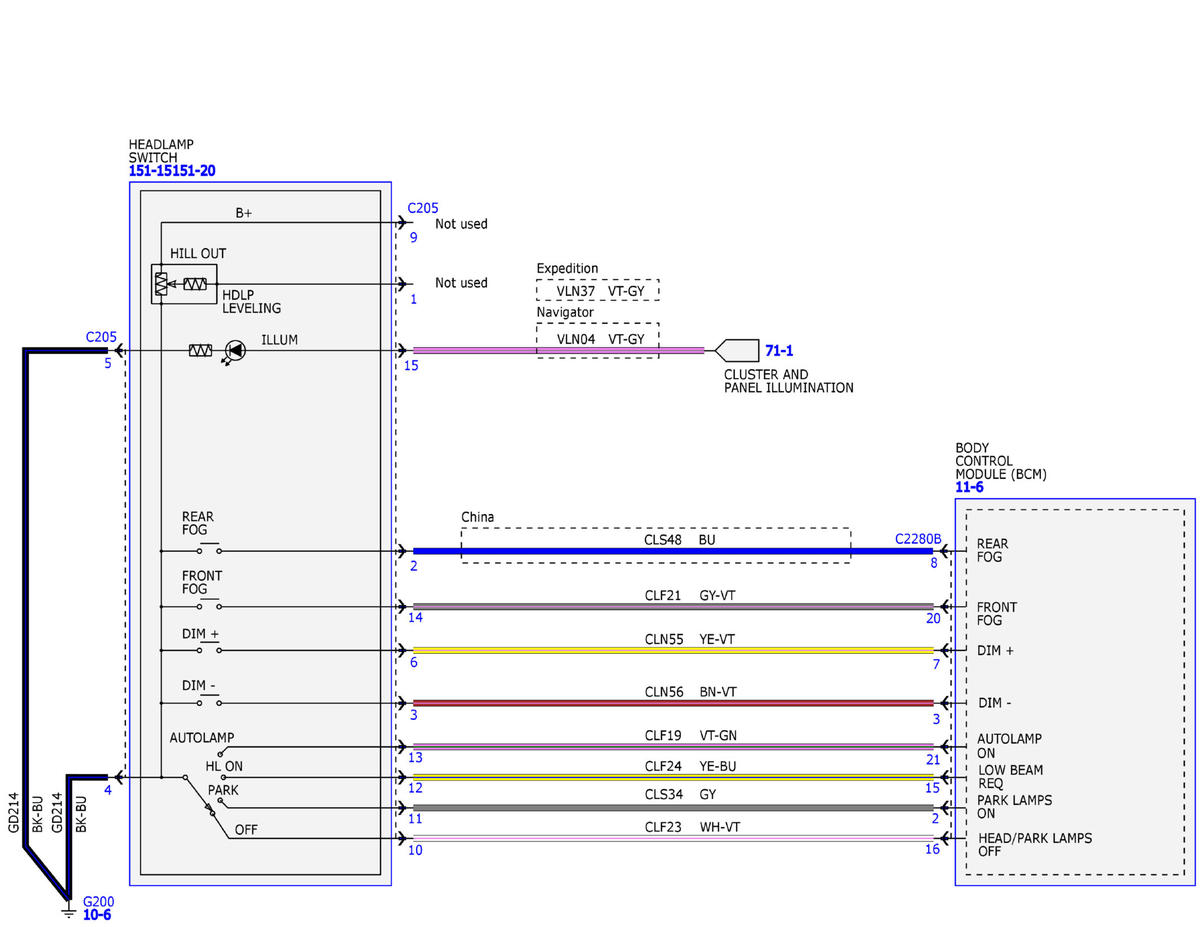

Fig 1: Headlamps/Autolamps Wiring Diagram (1 Of 9)
Courtesy of FORD MOTOR COMPANY

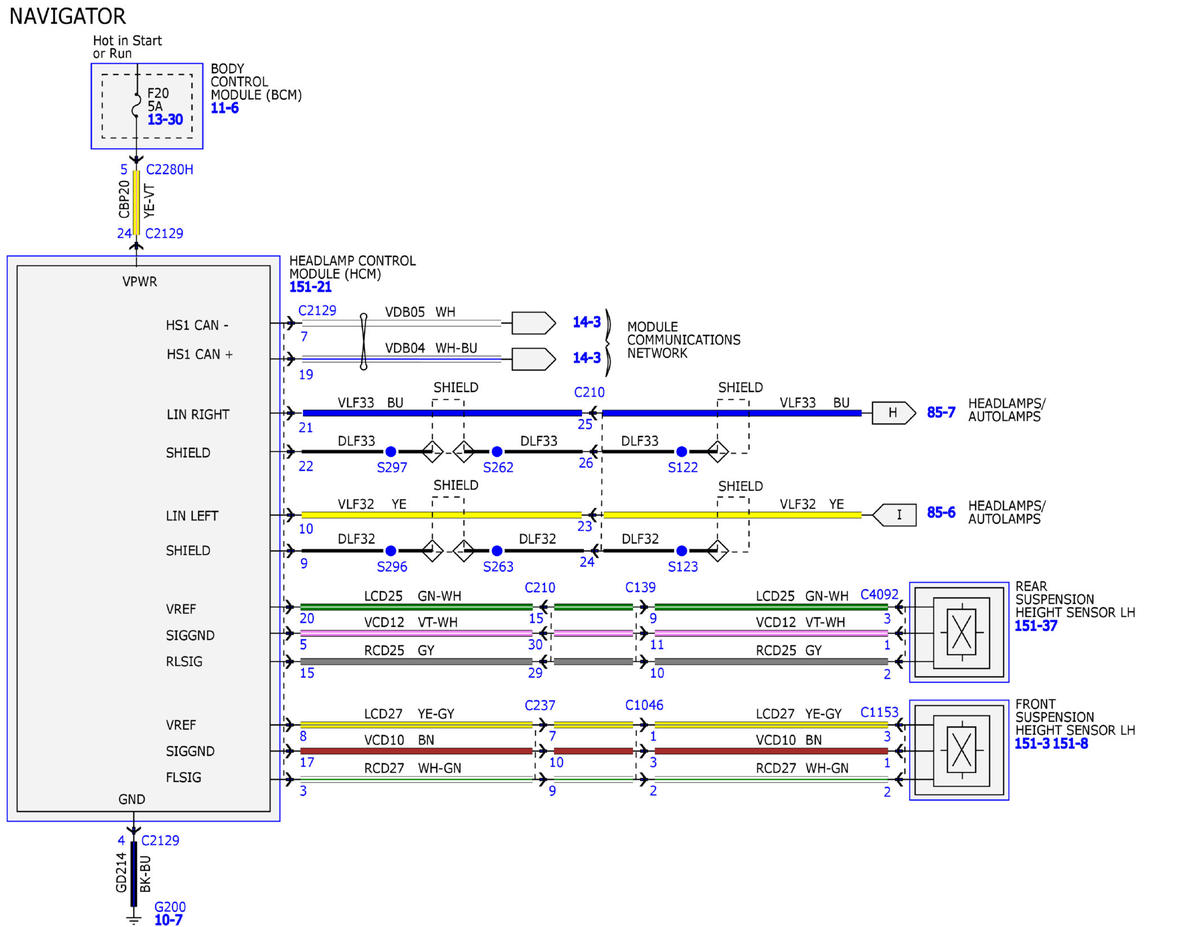

Fig 2: Headlamps/Autolamps Wiring Diagram (2 Of 9)
Courtesy of FORD MOTOR COMPANY

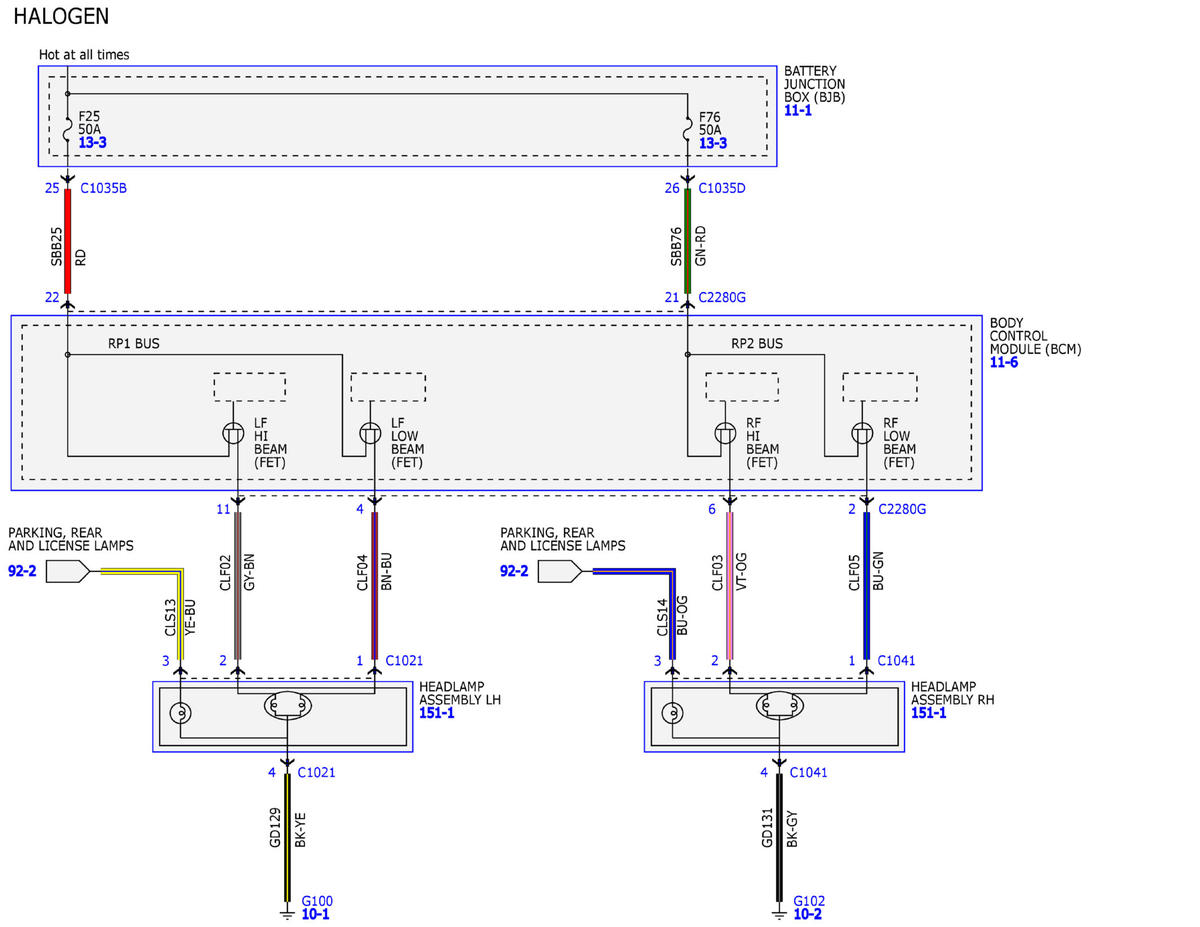

Fig 3: Headlamps/Autolamps Wiring Diagram (3 Of 9)
Courtesy of FORD MOTOR COMPANY

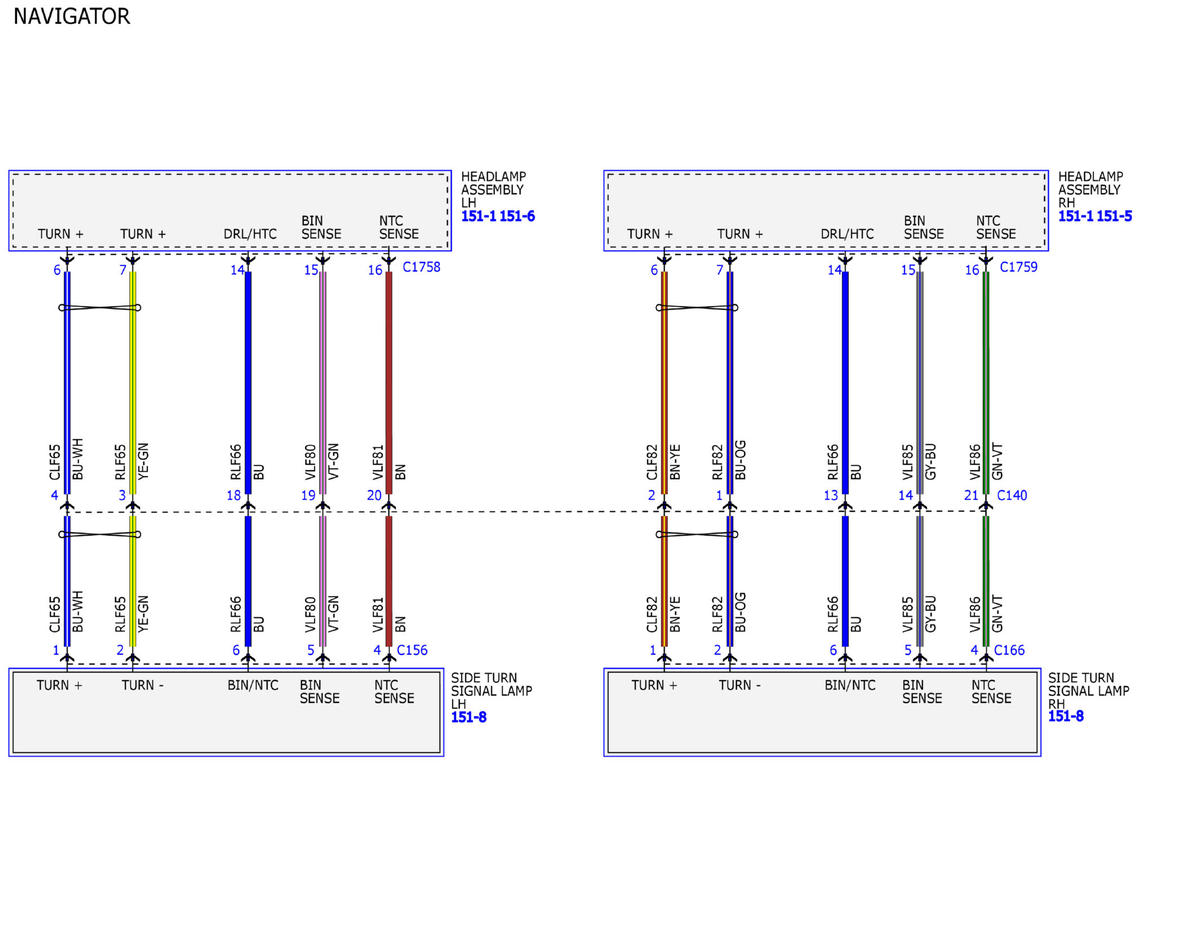

Fig 4: Headlamps/Autolamps Wiring Diagram (4 Of 9)
Courtesy of FORD MOTOR COMPANY

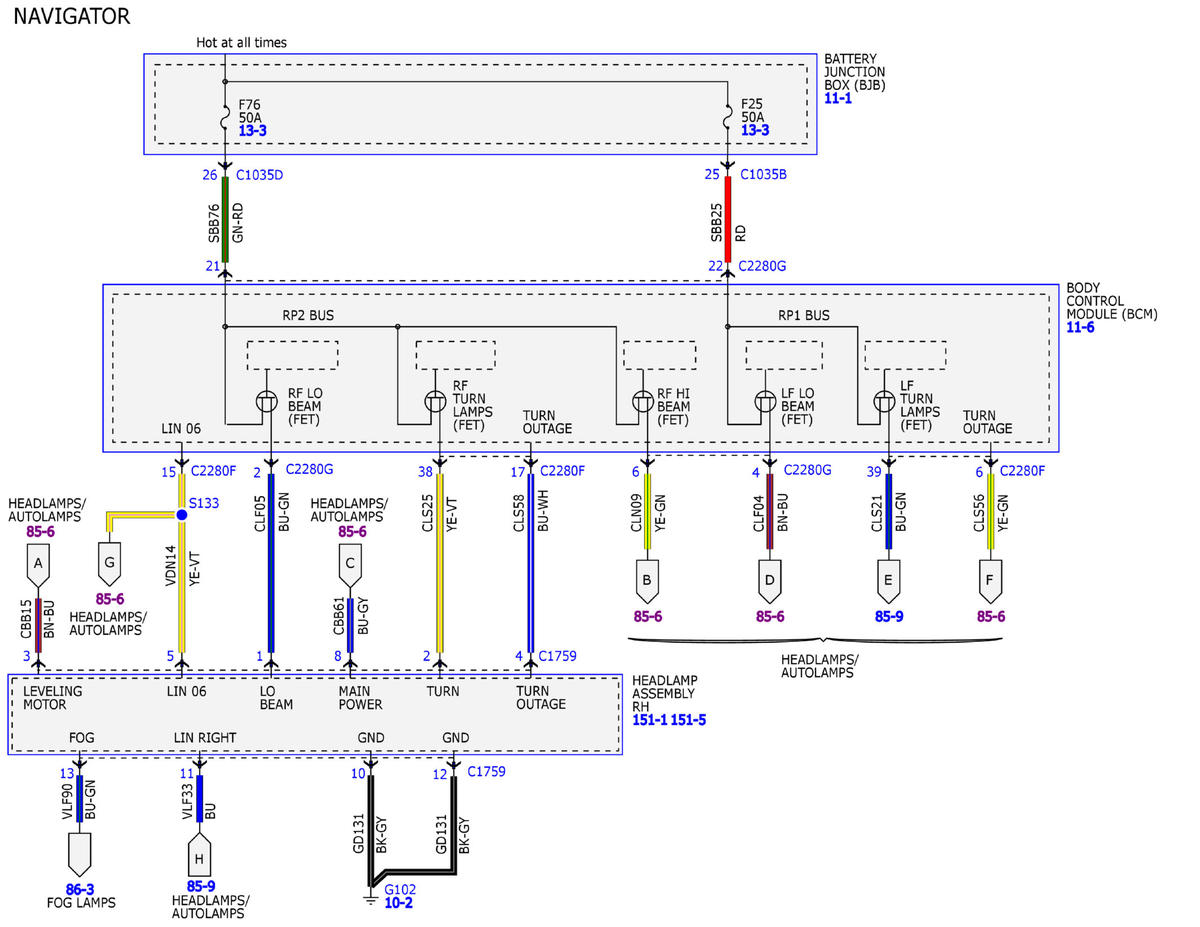

Fig 5: Headlamps/Autolamps Wiring Diagram (5 Of 9)
Courtesy of FORD MOTOR COMPANY

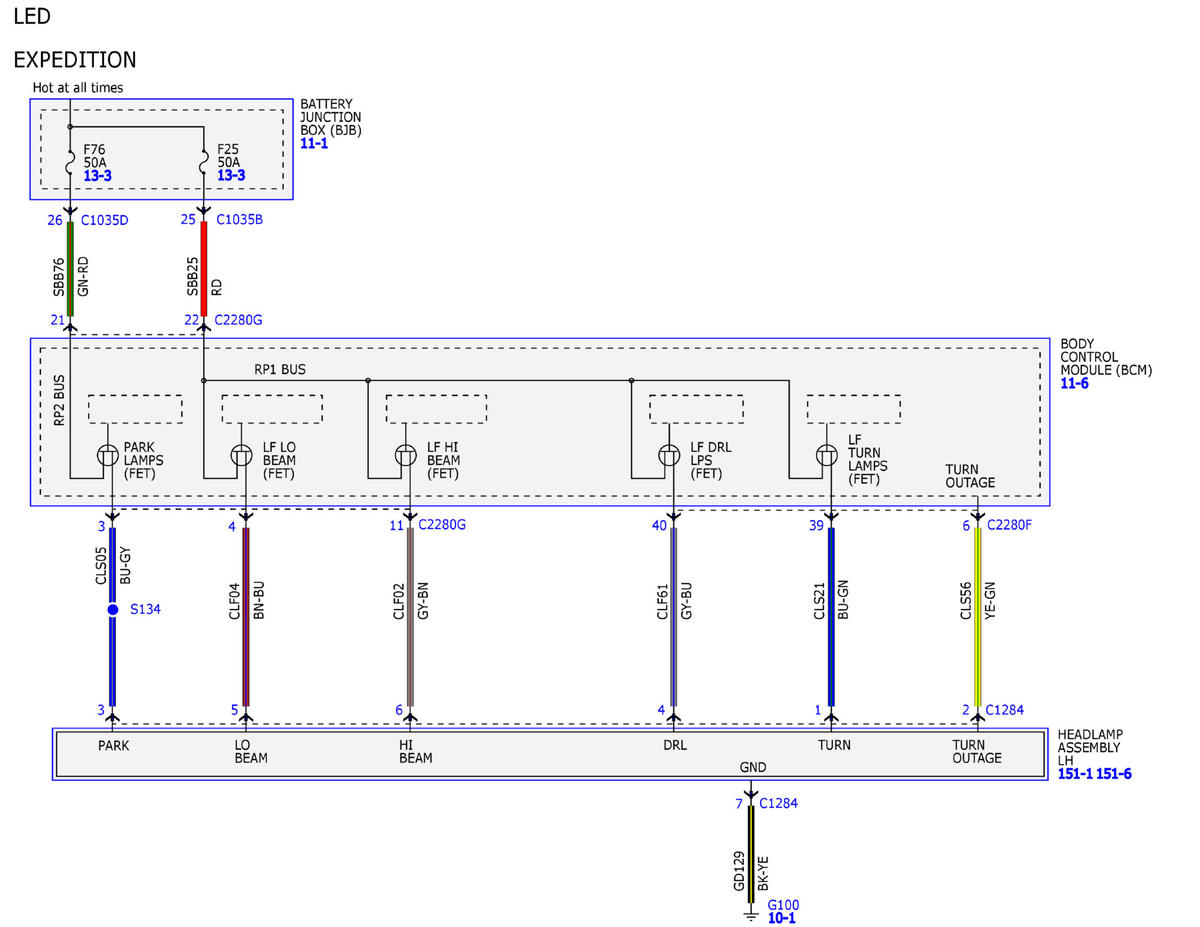

Fig 6: Headlamps/Autolamps Wiring Diagram (6 Of 9)
Courtesy of FORD MOTOR COMPANY

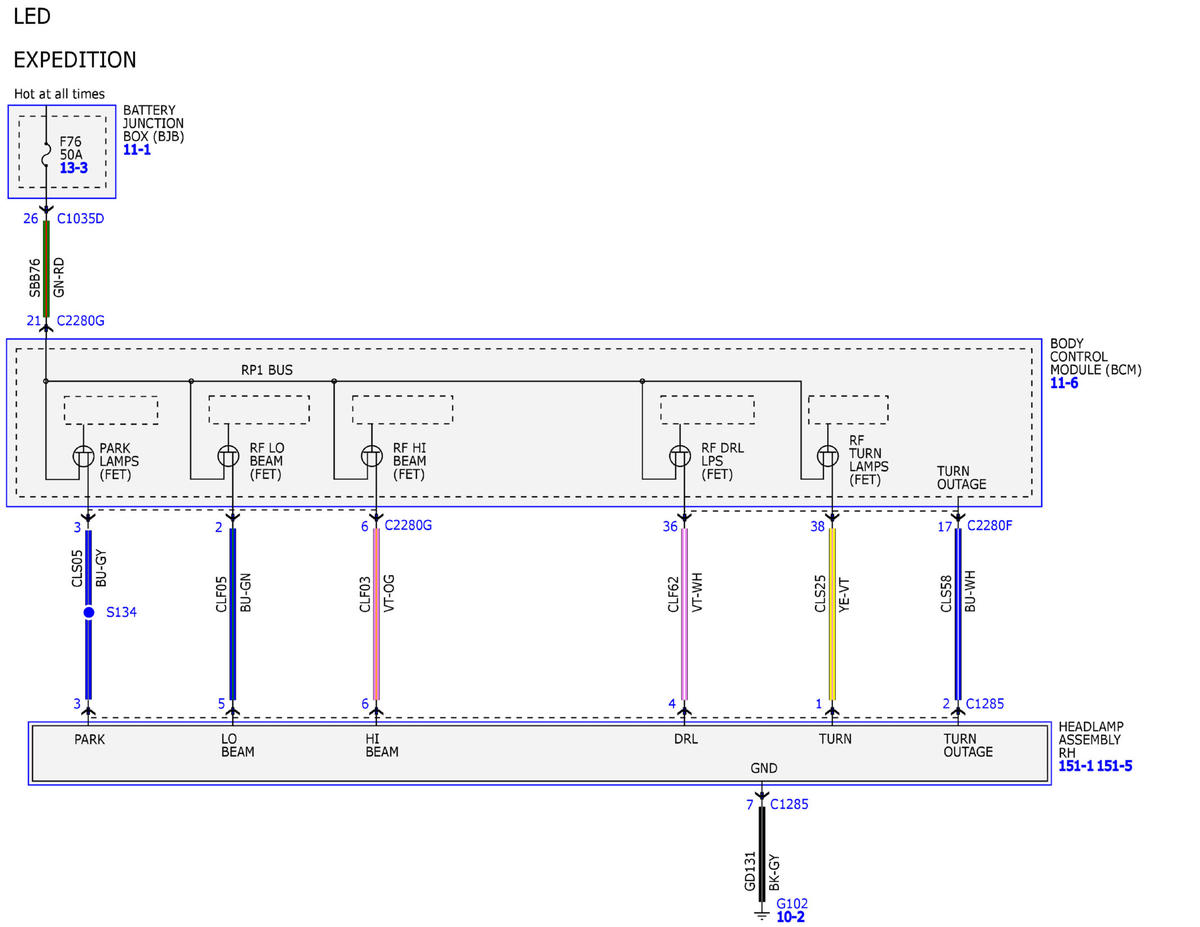

Fig 7: Headlamps/Autolamps Wiring Diagram (7 Of 9)
Courtesy of FORD MOTOR COMPANY

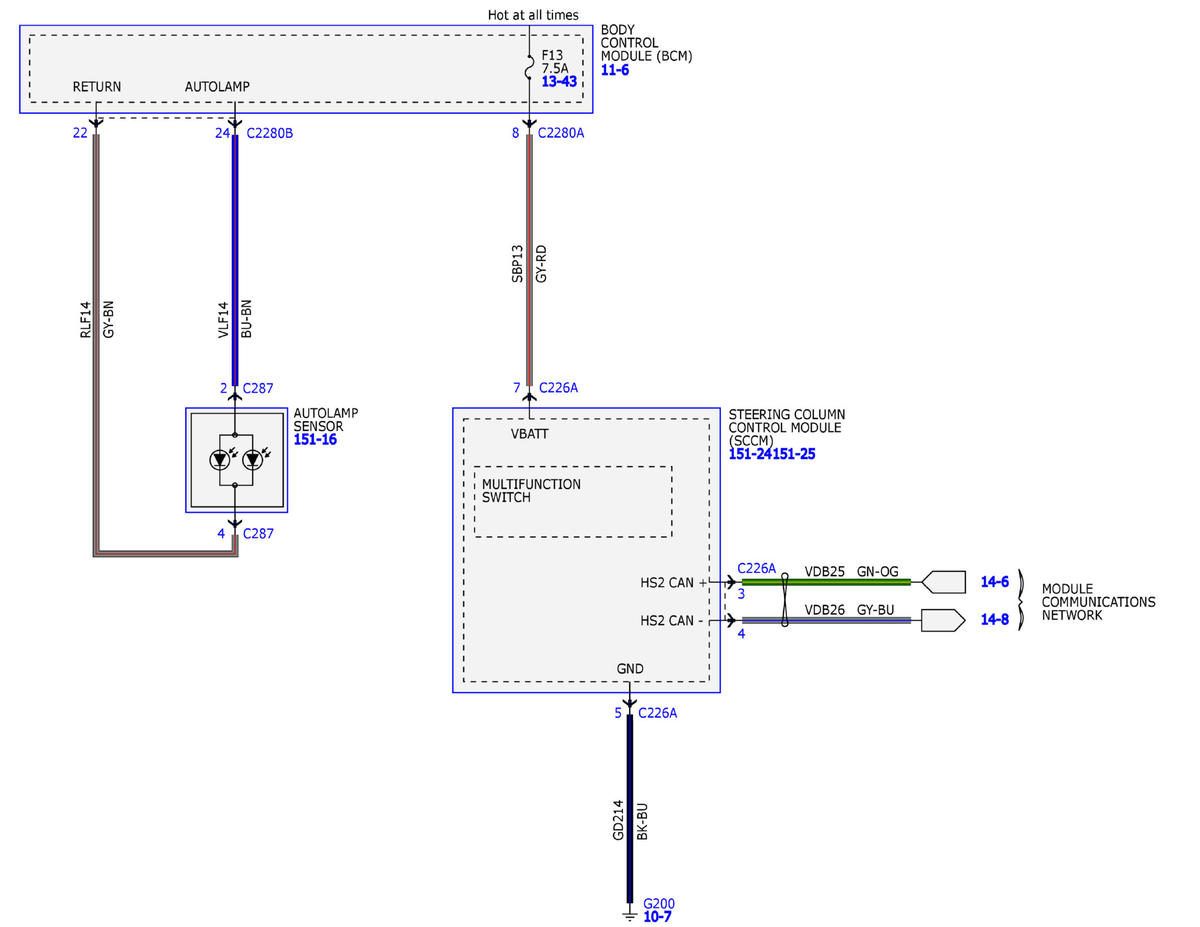

Fig 8: Headlamps/Autolamps Wiring Diagram (8 Of 9)
Courtesy of FORD MOTOR COMPANY
Fig 9: Headlamps/Autolamps Wiring Diagram (9 Of 9)
