WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

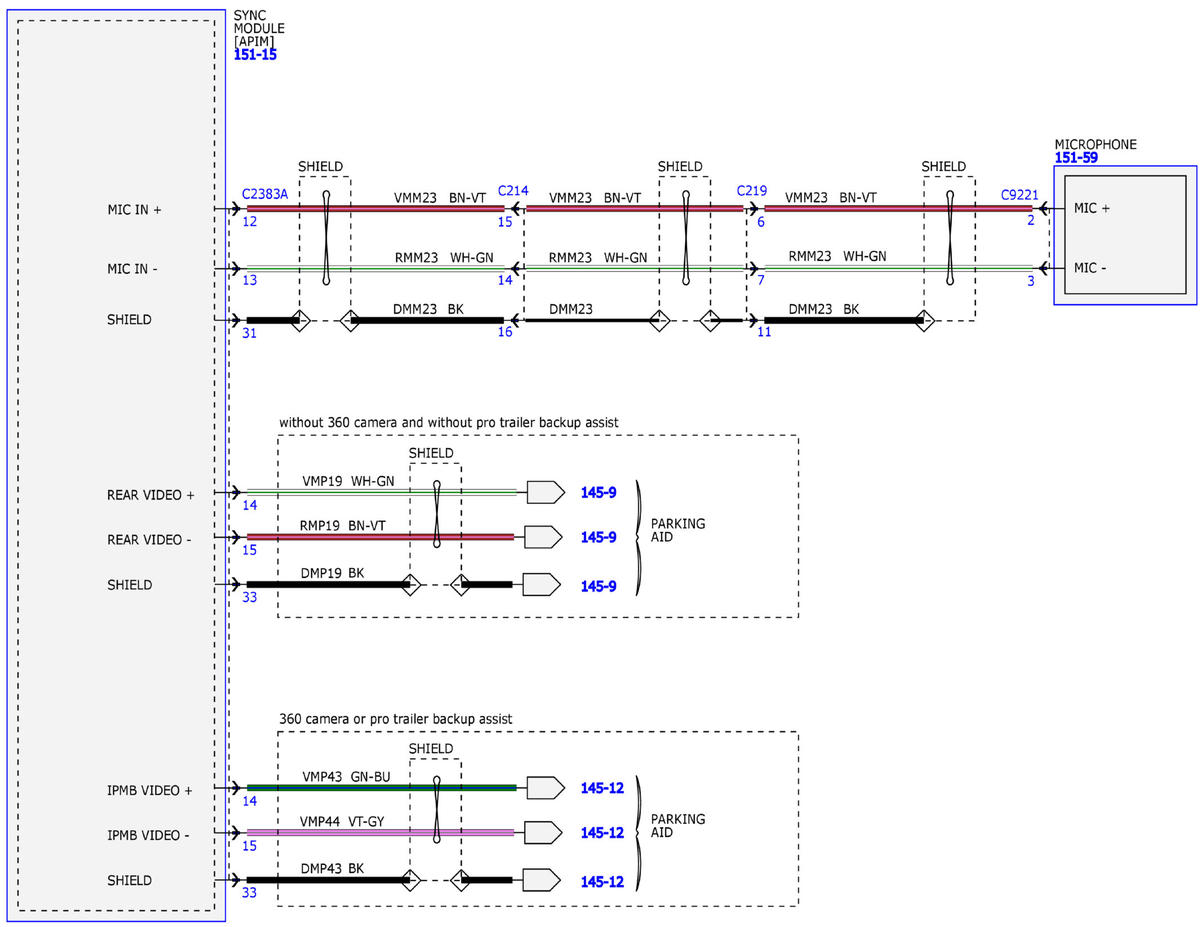

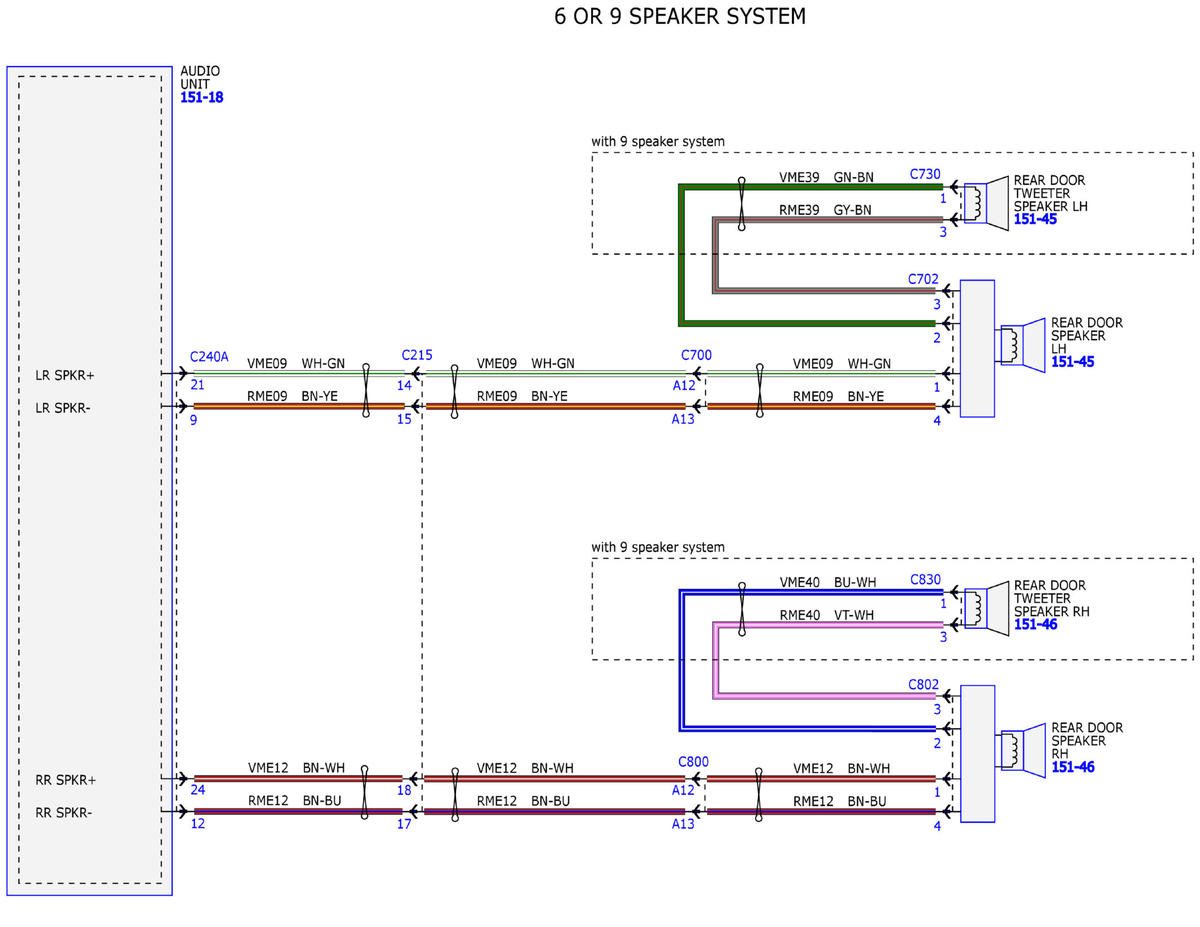

Fig 1: Audio System/Navigation - Expedition (1 Of 15)
Courtesy of FORD MOTOR COMPANY

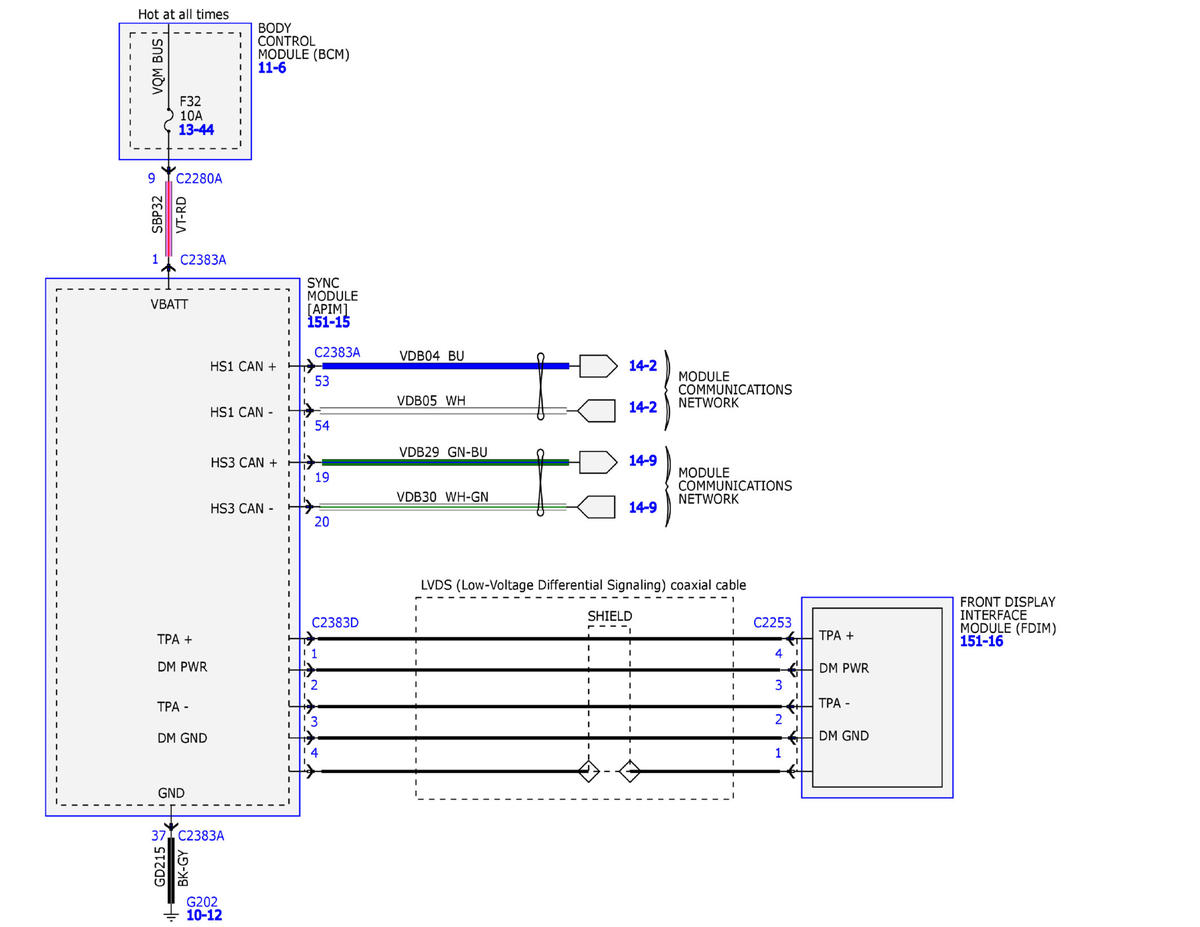

Fig 2: Audio System/Navigation - Expedition (2 Of 15)
Courtesy of FORD MOTOR COMPANY

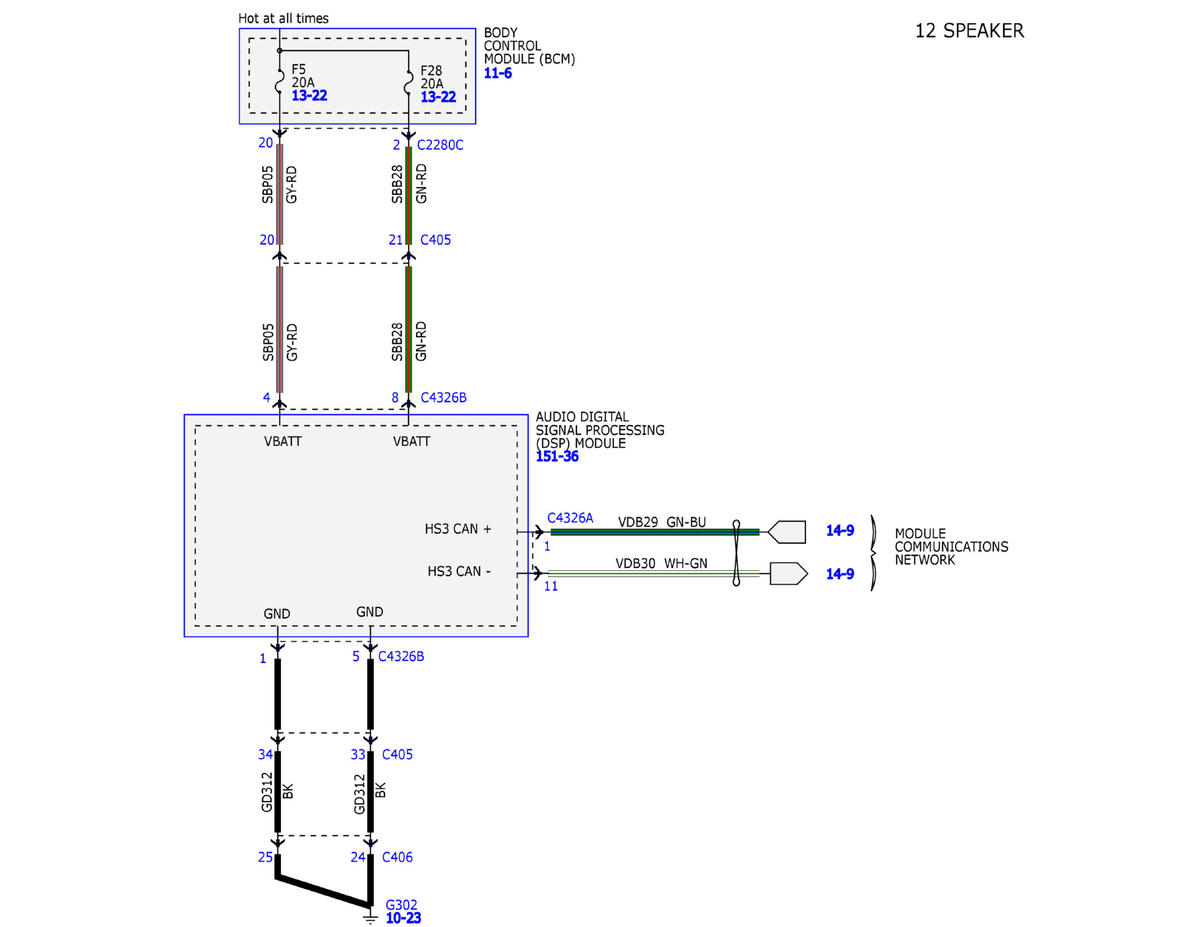

Fig 3: Audio System/Navigation - Expedition (3 Of 15)
Courtesy of FORD MOTOR COMPANY

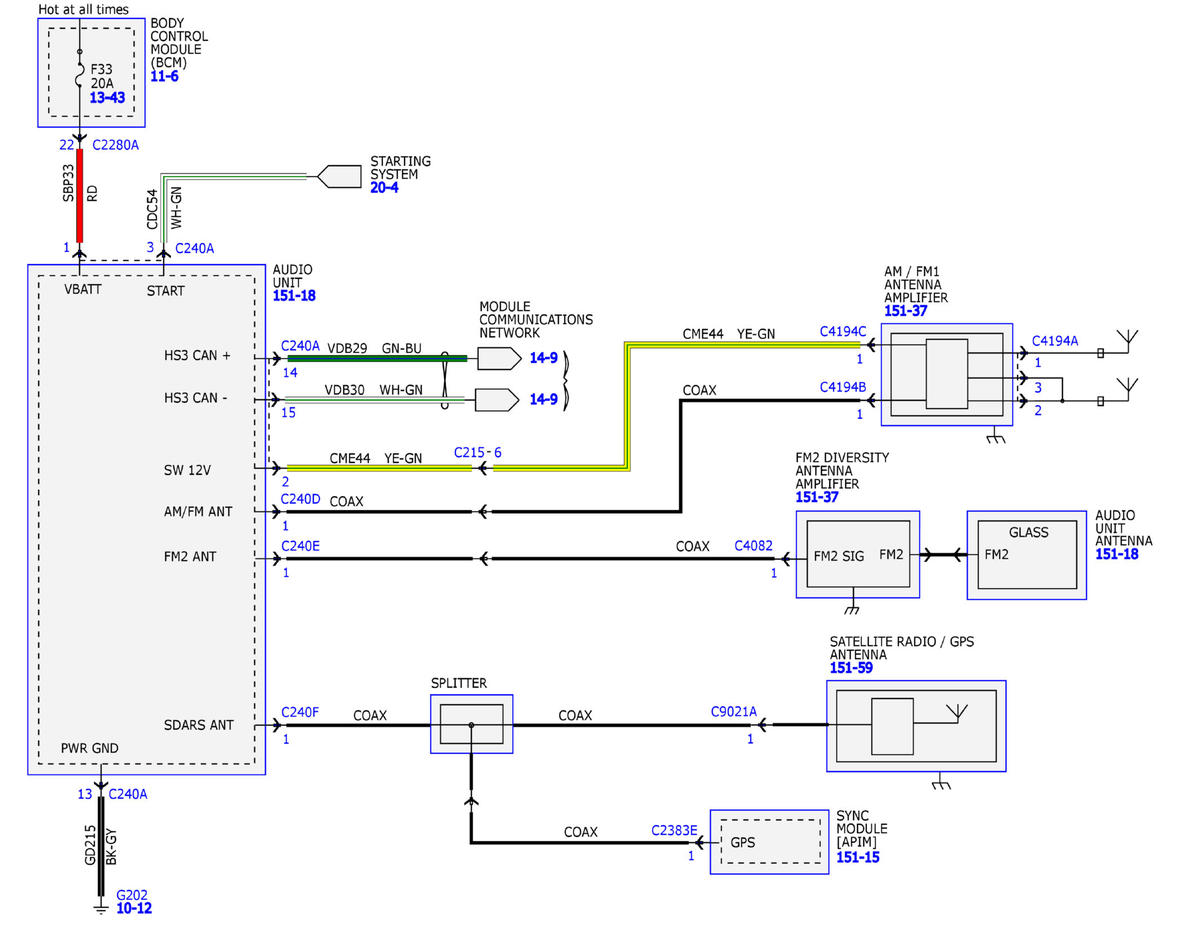

Fig 4: Audio System/Navigation - Expedition (4 Of 15)
Courtesy of FORD MOTOR COMPANY

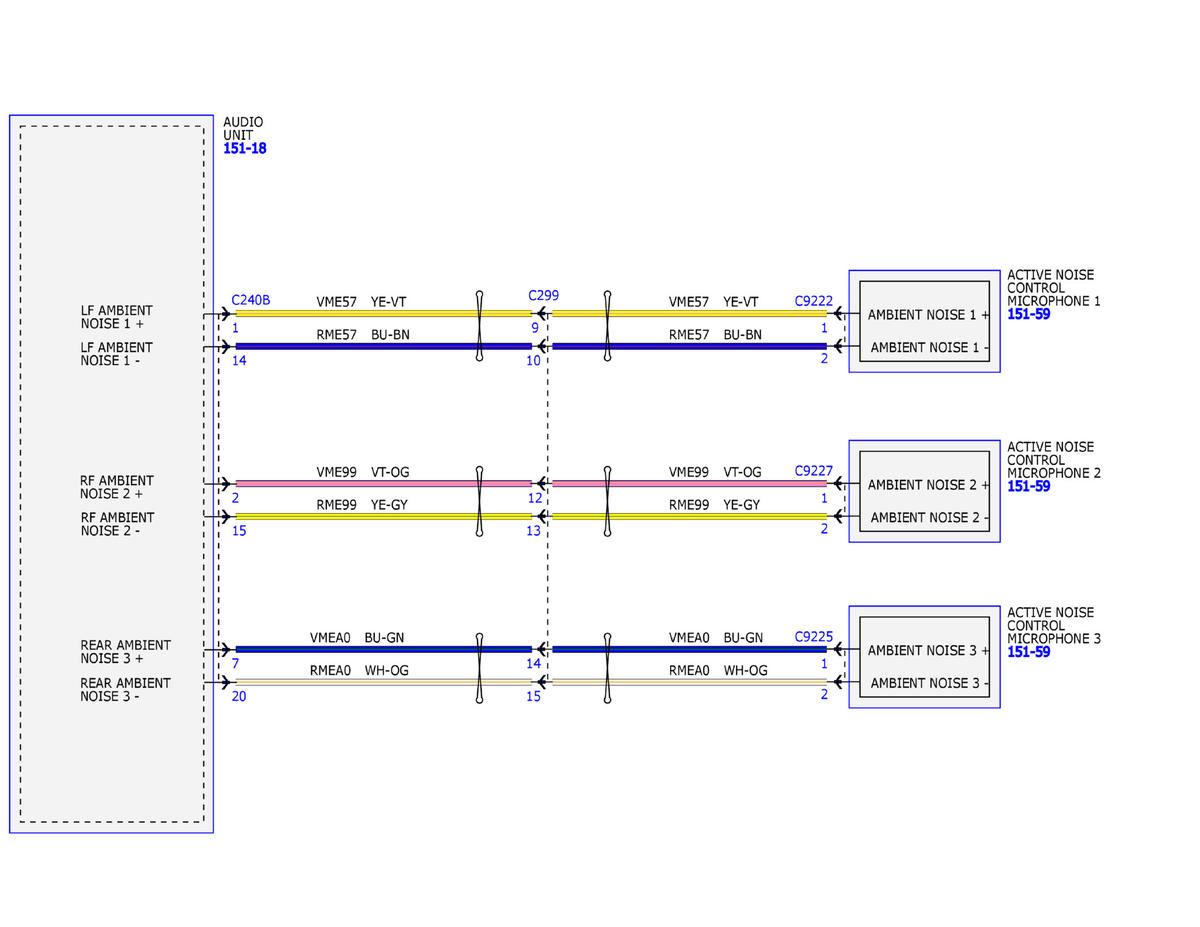

Fig 5: Audio System/Navigation - Expedition (5 Of 15)
Courtesy of FORD MOTOR COMPANY

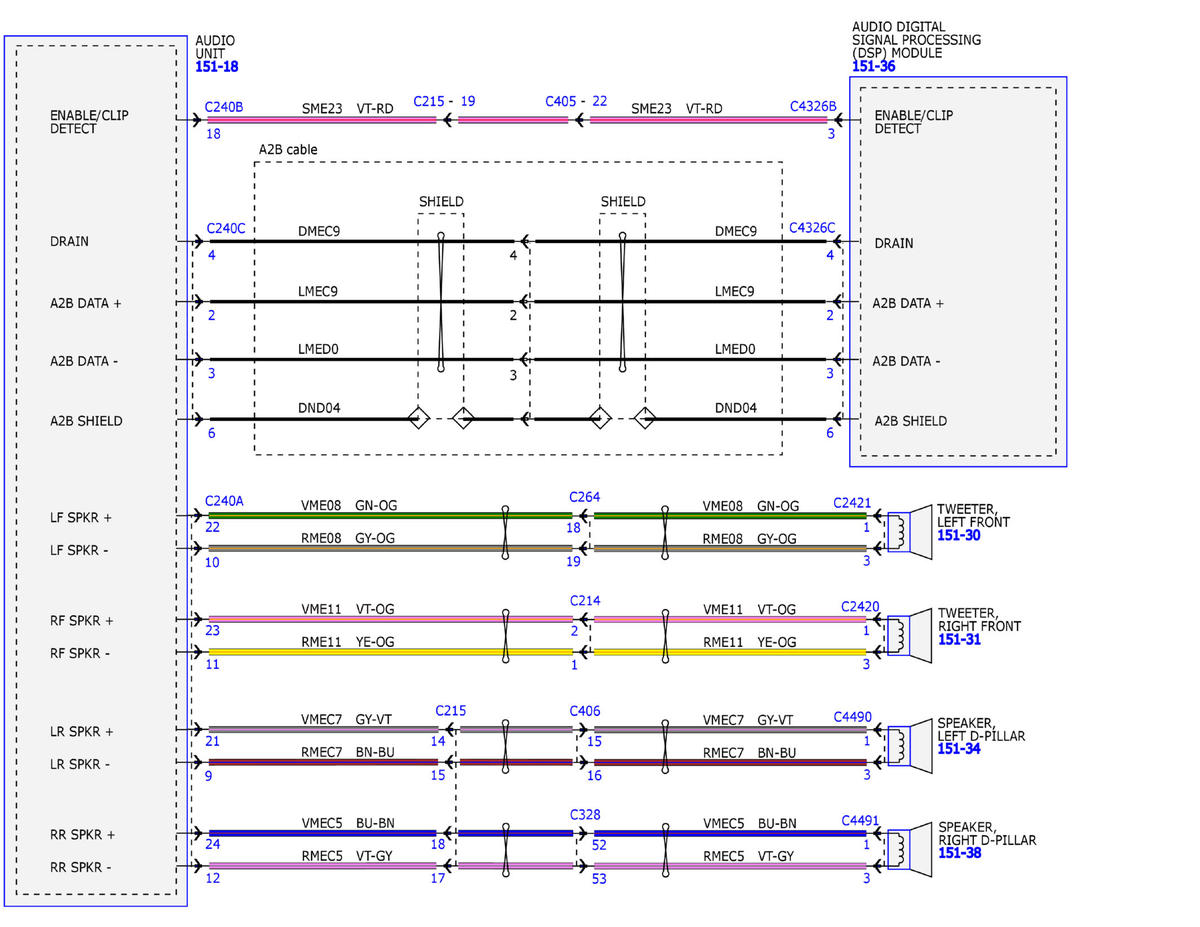

Fig 6: Audio System/Navigation - Expedition (6 Of 15)
Courtesy of FORD MOTOR COMPANY

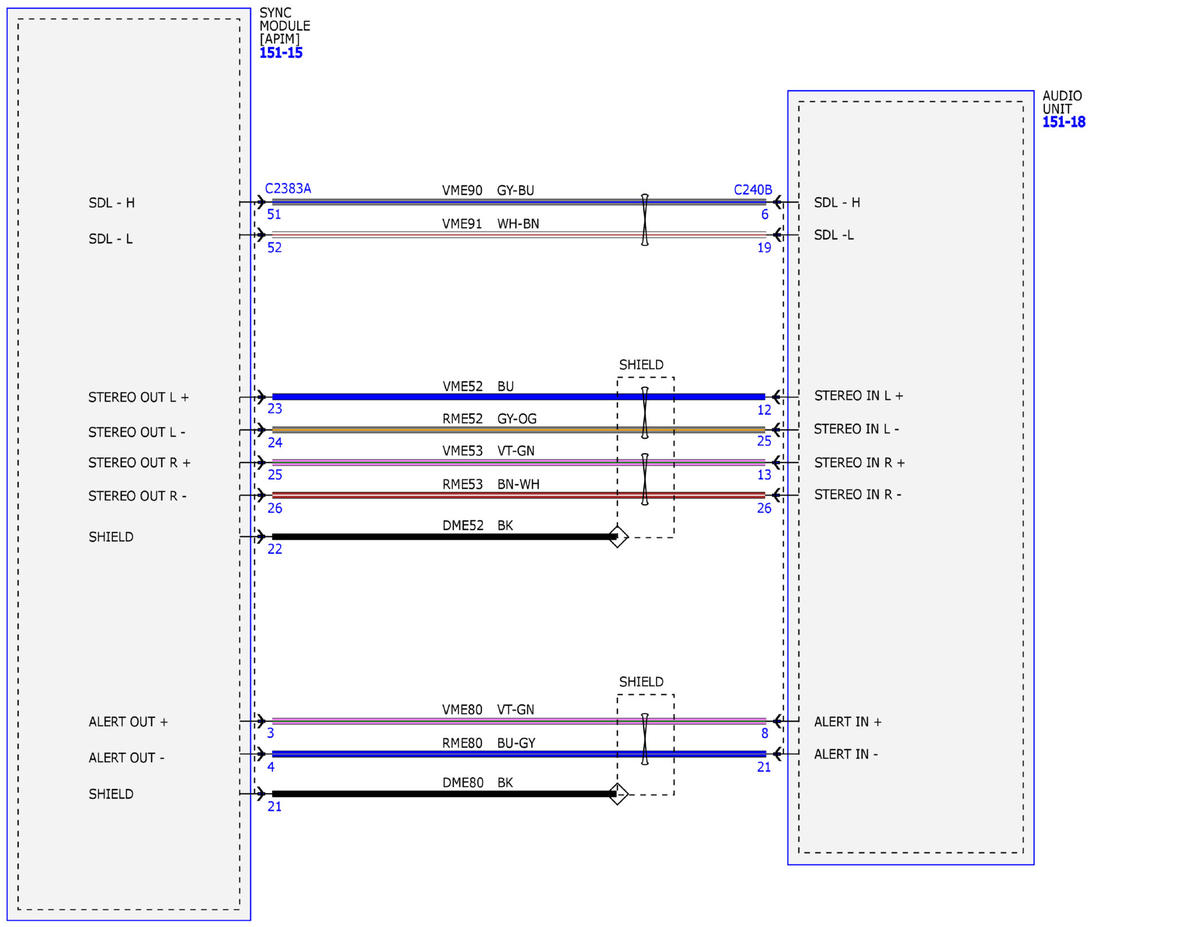

Fig 7: Audio System/Navigation - Expedition (7 Of 15)
Courtesy of FORD MOTOR COMPANY

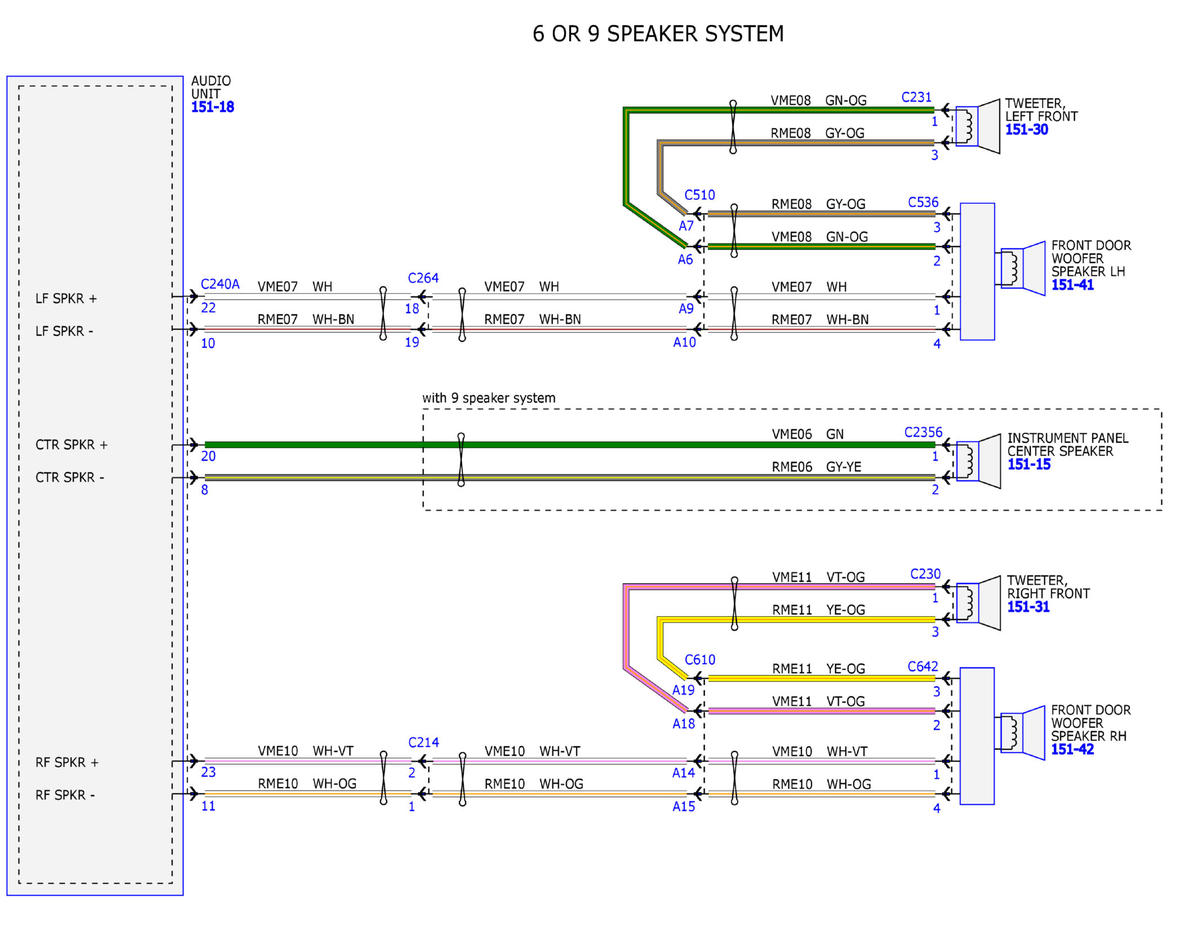

Fig 8: Audio System/Navigation - Expedition (8 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 9: Audio System/Navigation - Expedition (9 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 10: Audio System/Navigation - Expedition (10 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 11: Audio System/Navigation - Expedition (11 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 12: Audio System/Navigation - Expedition (12 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 13: Audio System/Navigation - Expedition (13 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 14: Audio System/Navigation - Expedition (14 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 15: Audio System/Navigation - Expedition (15 Of 15)
