Adjustable Steering Column

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Adjustable Steering Column (1 Of 7)

Courtesy of FORD MOTOR COMPANY

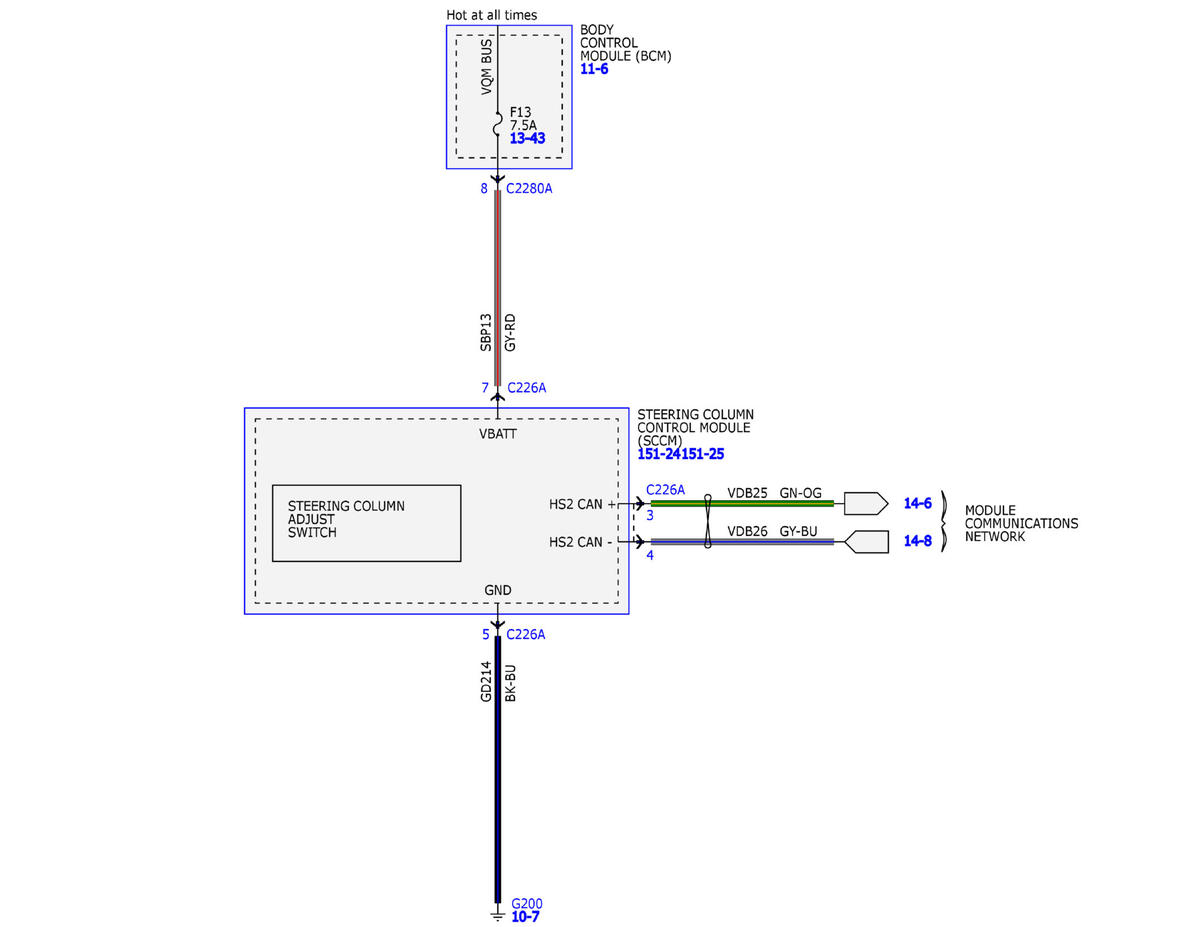

Fig 2: Adjustable Steering Column (2 Of 7)

Courtesy of FORD MOTOR COMPANY

Fig 3: Adjustable Steering Column (3 Of 7)

Courtesy of FORD MOTOR COMPANY

Fig 4: Adjustable Steering Column (4 Of 7)

Courtesy of FORD MOTOR COMPANY

Fig 5: Adjustable Steering Column (5 Of 7)

Courtesy of FORD MOTOR COMPANY

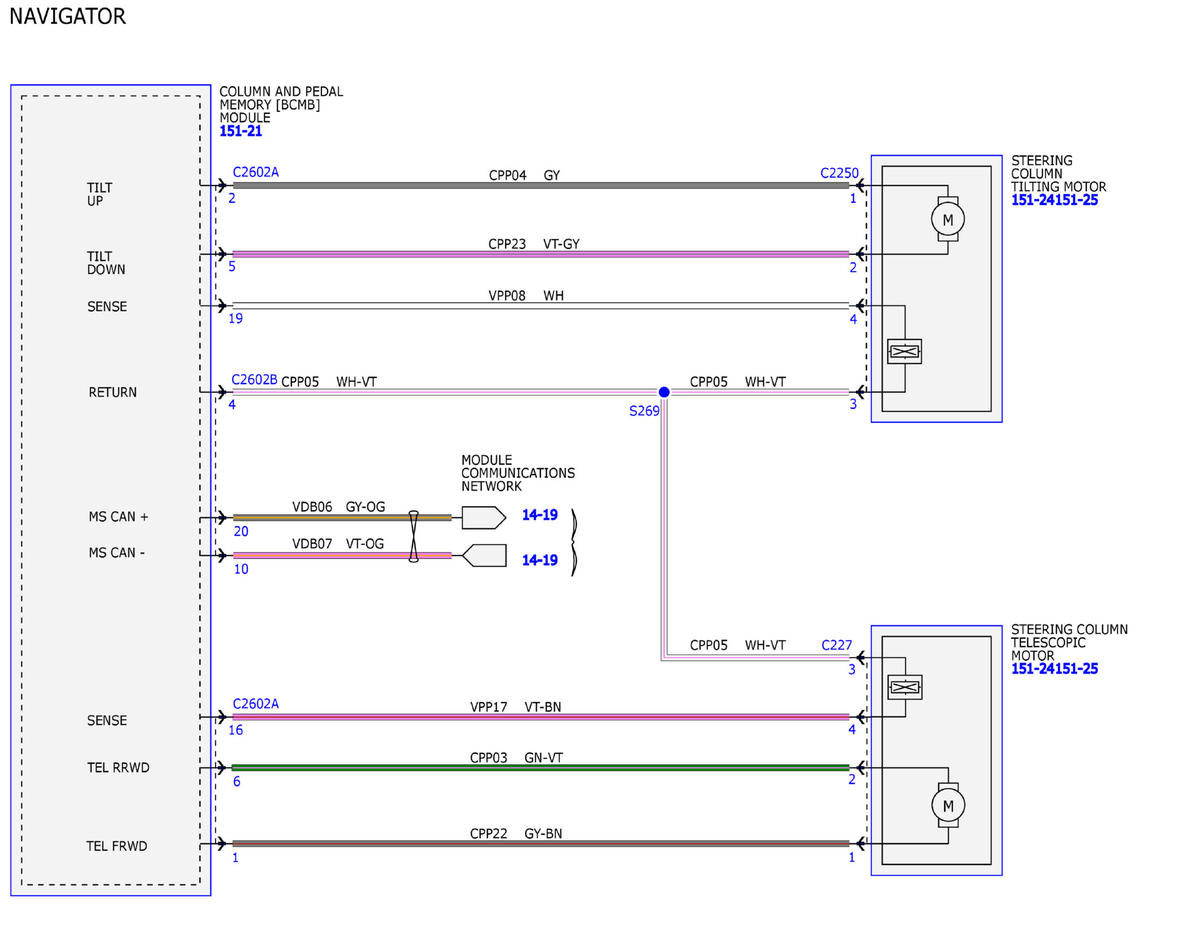

Fig 6: Adjustable Steering Column (6 Of 7)

Courtesy of FORD MOTOR COMPANY

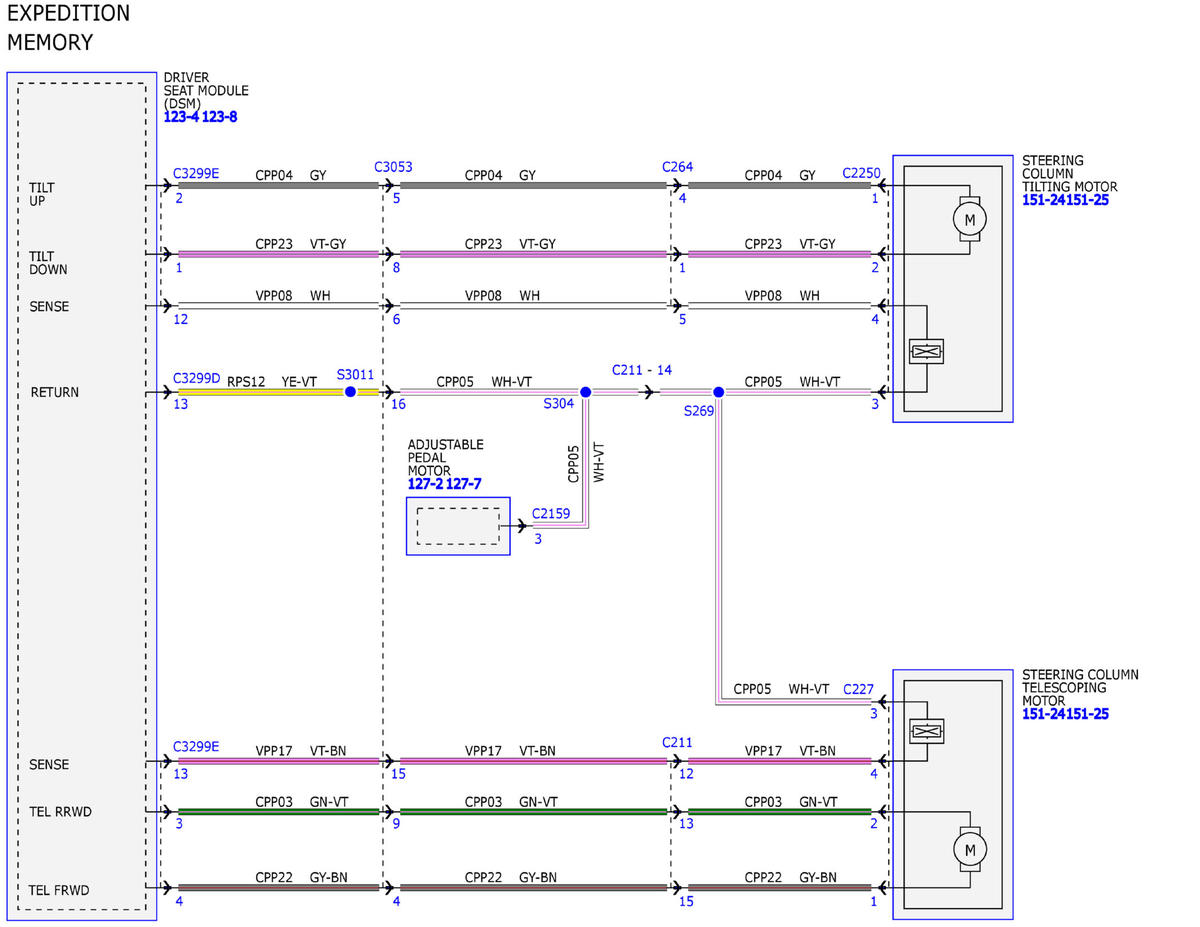

Fig 7: Adjustable Steering Column (7 Of 7)

Courtesy of FORD MOTOR COMPANY
