Connector End View C505 - Front Door Lock LH
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
FRONT DOOR LOCK LH
COLOR
HARNESS
14B121
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPL42 (GY-YE) | 22 | SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK | |
| 2 | RPW03 (BU-GN) | 22 | CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN | |
| 3 | CPL43 (VT-GY) | 22 | SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK | |
| 4 | CPL77 (BU-GN) | 22 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER ILLUMINATION | |
| 5 | * | * | Not Used |

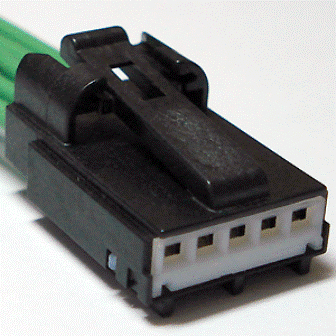

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-983 |
Service Part Number: 6U2Z-14S411-SB Gauge: 18 Pin material: Silver Cavities: 5 Vehicle Uses Module - Heads Up Display Switch - Overdrive Cancel Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) |
