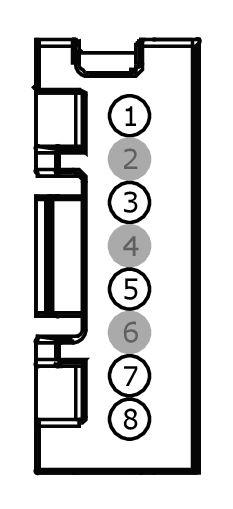

Connector End View C390 - Wireless Accessory Charging Module
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
WIRELESS ACCESSORY CHARGING MODULE
COLOR
HARNESS
14B079
BASE PART #
PART# N/A
SERVICE PIGTAIL
NOT AVAILABLE
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBP10 (YE-RD) | 22 | FUSE - OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | CRT36 (BU-GY) | 22 | CTRL MOD. - WIRELESS CHARGE ENABLE/DISABLE | |
| 4 | * | * | Not Used | |
| 5 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | |
| 6 | * | * | Not Used | |
| 7 | VDB30 (WH-GN) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW | |
| 8 | VDB29 (GN-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH |
