Connector End View C299 - Inline
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
INLINE
COLOR
BASE PART #
SERVICE PIGTAIL
SEE BELOW

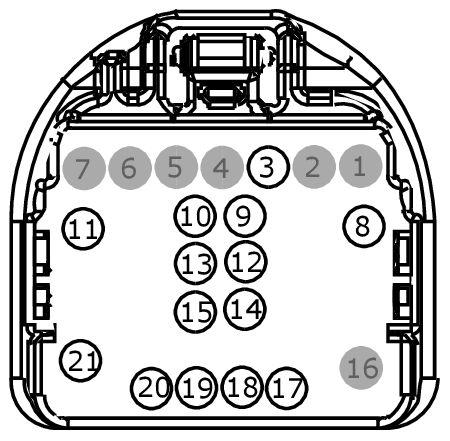

MALE
HARNESS 14335

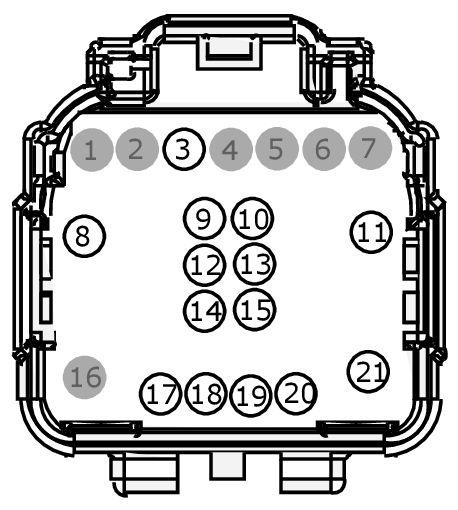

FEMALE
HARNESS 14401
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | * | * | |
| 3 | CRB05 (GN-OG) | 22 | |
| 4 | * | * | |
| 5 | * | * | |
| 6 | * | * | |
| 7 | * | * | |
| 8 | CBB86 (WH-BU) | 22 | |
| 9 | VME57 (YE-VT) | 22 | |
| 10 | RME57 (BU-BN) | 22 | |
| 11 | GD214 (BK-BU) | 22 | |
| 12 | VME99 (VT-OG) | 22 | |
| 13 | RME99 (YE-GY) | 22 | |
| 14 | VMEA0 (BU-GN) | 22 | |
| 15 | RMEA0 (WH-OG) | 22 | |
| 16 | * | * | |
| 17 | VH468 (BN-BU) | 22 | |
| 18 | VH467 (GN-OG) | 22 | |
| 19 | VH466 (BU-GN) | 22 | |
| 20 | RH111 (GY-BU) | 22 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | * | * | |
| 3 | CRB05 (GN-OG) | 22 | |
| 4 | * | * | |
| 5 | * | * | |
| 6 | * | * | |
| 7 | * | * | |
| 8 | CBB86 (WH-BU) | 20 | |
| 9 | VME57 (YE-VT) | 22 | |
| 10 | RME57 (BU-BN) | 22 | |
| 11 | GD214 (BK-BU) | 20 | |
| 12 | VME99 (VT-OG) | 22 | |
| 13 | RME99 (YE-GY) | 22 | |
| 14 | VMEA0 (BU-GN) | 22 | |
| 15 | RMEA0 (WH-OG) | 22 | |
| 16 | * | * | |
| 17 | VH468 (BN-BU) | 22 | |
| 18 | VH467 (GN-OG) | 22 | |
| 19 | VH466 (BU-GN) | 22 | |
| 20 | RH111 (GY-BU) | 22 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1561 |
Service Part Number: JU2Z-14S411-ARA Gauge: 14 16 20 Pin material: Tin Cavities: 21 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number WPT-1559 |
Service Part Number: FU2Z-14S411-RB Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
