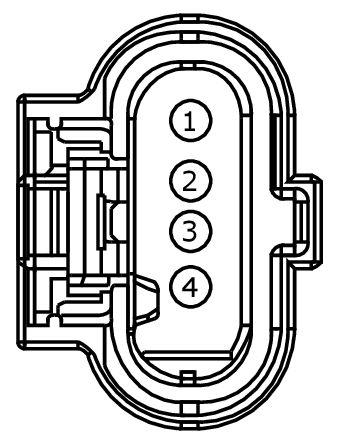

Connector End View C1694 - Manifold Absolute Pressure And Temperature (MAPT) Sensor
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR
COLOR
HARNESS
12C508
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VE740 (VT-GY) | 18 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | |
| 2 | LE423 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) | |
| 3 | VE804 (GN-BN) | 18 | SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) + | |
| 4 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1537 |
Service Part Number: JU2Z-14S411-ACA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Module - Differential Oil Temperature Module - Particulate Matter Bank Sensor Module - Reductant Quality Noise Generator Sensor - Fuel Rail Pressure and Temperature Sensor - Manifold Pressure/Intake Temperature Sensor - Turbo Intake Pressure/Temperature Valve - Active Exhaust Solenoid |
