Rear Water Drain Hoses, Removing And Installing, Sedan

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

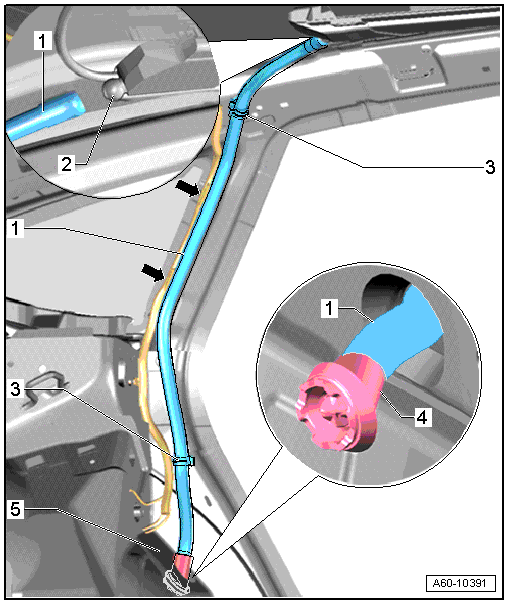

Rear Water Drain Hose
- Removing:
  -- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING Interior Trim .

  -- Remove the rear wheel housing liner. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .

  -- Open the hose bracket -3- and remove the water drain hose from the connection -2-.

  -- Remove the grommet -4- at the top of the wheel housing and remove the water drain hose downward.
- Installing:
  -- When installing push the hose through the wheel housing from the bottom.

  -- Push it upward, as shown and route along the D-pillar and attach to the end piece from the Panorama sliding sunroof.

  -- Install the rear grommet in the wheel housing.

  -- Secure the water drain hose with the hose bracket.
Water Drain Rear Connection
Hose Bracket
Grommet
- Must be pushed completely into the wheel housing
Wheel Housing
