Rear Water Drain Hoses, Removing And Installing, AVANT

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

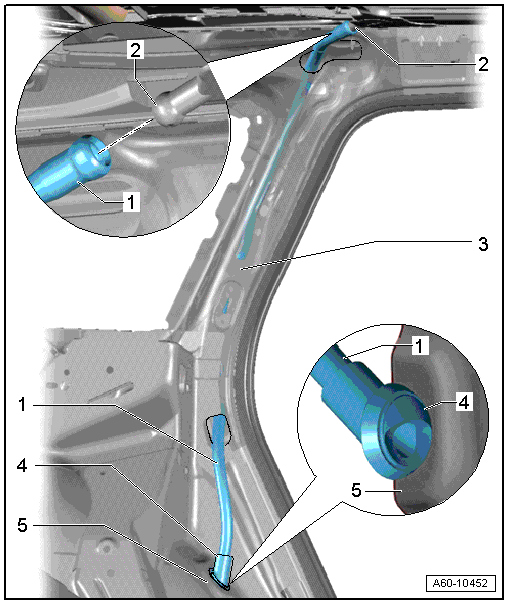

Rear Water Drain Hose
- Removing:
  -- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

  -- Remove the rear wheel housing liner. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .

  -- Pull the water drain hose off the connection -2-.

  NOTE:
  Before pulling the water drain hose, tie a string to help pull it out.

  -- Remove the grommet -4- at the top of the wheel housing and remove the water drain hose downward.
- Installing:
  -- Push the hose back into the wheel housing from the bottom.

  -- Push it upward along the D-pillar and then attach it to the connection on the Panorama sliding sunroof.

  -- Install the rear grommet in the wheel housing.
Connection
C-Pillar
Grommet
- Must be pushed completely into the wheel housing
Wheel Housing
