Front Water Drain Hoses, Removing And Installing, AVANT

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

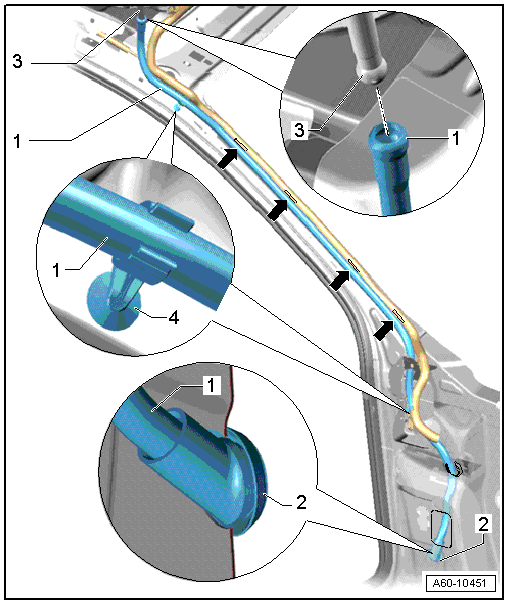

Front Water Drain Hose
- Removing:
  -- Remove the trim on the A-pillar. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

  -- Pull the water drain hose off the connection -3- and remove it from the bracket -4-.

  -- Unclip the water drain hose at the four locations shown -arrows-.

  -- Remove the grommet at the bottom of the A-pillar -2- and pull the water drain hose downward out of the A-pillar.
- Installing:
  -- For the assembly, insert the hose in the A-pillar from the bottom.

  -- Push the hose through the opening in the A-pillar reinforcement and clip it.

  -- Push it upward as illustrated, pull it out and attach it to the Panorama sliding sunroof connection.

  -- Push the water drain hose into the clips -arrows- and secure it in the bracket -4-.
Grommet
- The grommet is firmly attached to the water drain hose and must be pressed into A-pillar at the bottom.
Connection
Bracket
