Overview - Water Drain Hoses, Sedan

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

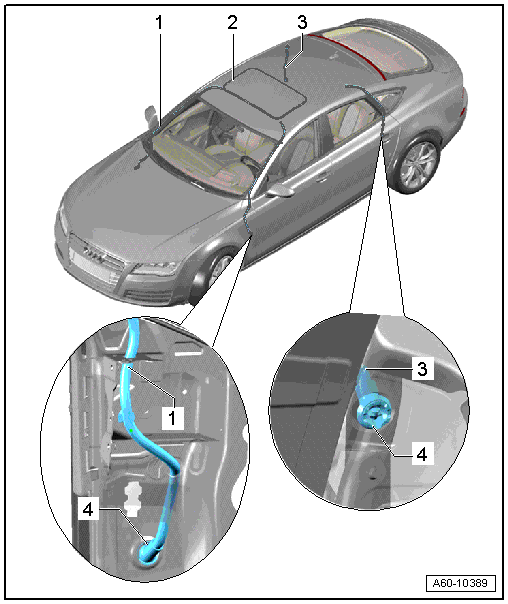

Fig 1: Exploded View Of Water Drain Hoses (Sedan)
GWWA60-10389Courtesy of AUDI OF AMERICA, LLC
  1. Front Water Drain Hose
    • The front water drain hoses are routed along the >>A-pillars<< and end at the bottom of the >>A-pillar<< behind the door.
    • Clean the Panorama sliding sunroof immediately.
  2. Sunroof Frame
  3. Rear Water Drain Hose
    • Rear water drain hoses are routed along the >>D-pillars<< and end in wheel housing above wheel housing liner.
    • Cleaning the hose begins from the lower end of the hose.
    • To do so, rear wheel housing liner must be removed.
  4. >>A-pillar<< Grommet
    • Must be pushed in completely.
