Sunroof Shade, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Install In Reverse Order Of Removal And Note The Following:

-- Make sure that the side reinforcement is engaged in the frame guide tabs -1- and runs under the guide tab -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the securing pin on the shaft just after installing in the frame.

-- With the tension bow installed, push the sun shade all the way to the rear and install the Roof Shade Control Module -J394-.

NOTE:

If The Axle In The Sun Shade Shaft Is Rolled Up, It Is Possible To Re-Establish The Pretension By Doing The Following.

Before The Sun Shade Can Be Pretensioned, First Make Sure That The Spring Is Evenly Removed Of Tension By Gently Tapping The Shaft.

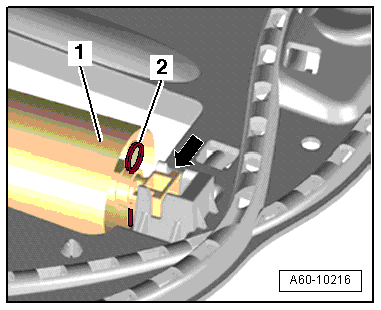

-- Turn the axle of the rolled up sun shade -1- until it is possible to feel a slight resistance.

Courtesy of AUDI OF AMERICA, LLC

-- Then turn the axle with the end piece -arrow- 12 turns while holding the shaft secure, and then use the locking pin -2- to secure it from unrolling.

-- Then the sun shade can be re-installed.
