Panorama Sliding Sunroof Seal, Removing And Installing: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove both sunroof panels.

-- Remove the Panorama sunroof frame. Refer to SUNROOF FRAME, REMOVING AND INSTALLING, AVANT .

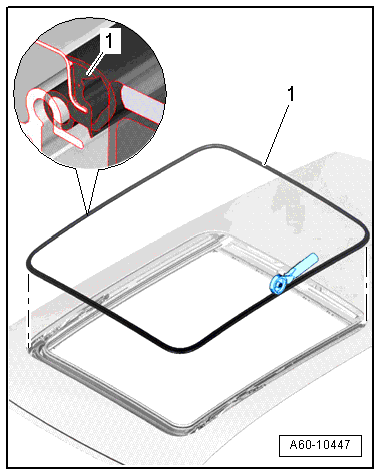

-- Remove the seal -1- from the side body flange.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The Adhesive Surfaces Must Be Free Of Dust And Grease.

Heat The Adhesive Surface And Seal To 40° C (104 °F) Before Bonding.

-- Remove the remaining adhesive if necessary and clean the body flange.

-- Clean the adhesive surfaces on the vehicle body with Cleaning Solution -D 009 401 04-.

-- First remove the protective film from the adhesive tape on the rear side and press the seal with the joint on the rear vehicle center (pay attention to the marking).

-- Press the seal in the front edges.

-- Press on seal on the front side.

-- Press seal in the rear radii.

-- Press on seal on the rear side.

-- Press seal on the long sides, at the same time press on the excess length evenly if necessary.

-- Press on the seal all around using the :3356 .
