Attaching Points For The Frame
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

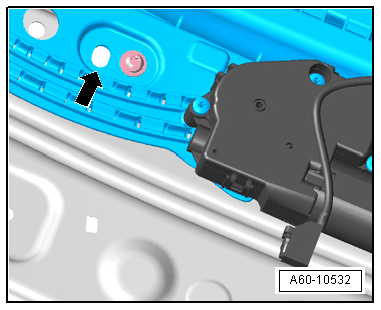

-- Insert a 10 mm drill bit in the left front longitudinal holes -arrow- next to the Power Sunroof Control Module -J245- and...

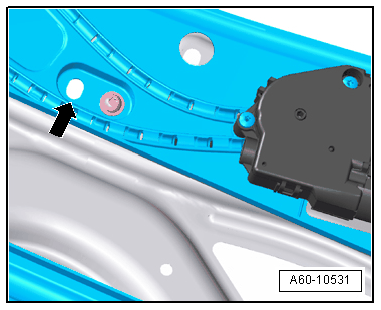

--...in the left rear longitudinal hole -arrow- next to the Roof Shade Control Module - J394-.
-- Tighten The Screws First At The Front And Then At The Rear Perpendicular To The Frame To The Tightening Specification.
-- Tighten The Screws Longitudinally Alternating From Rear To Front To The Tightening Specification.
