Overview - Sliding Sunroof

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

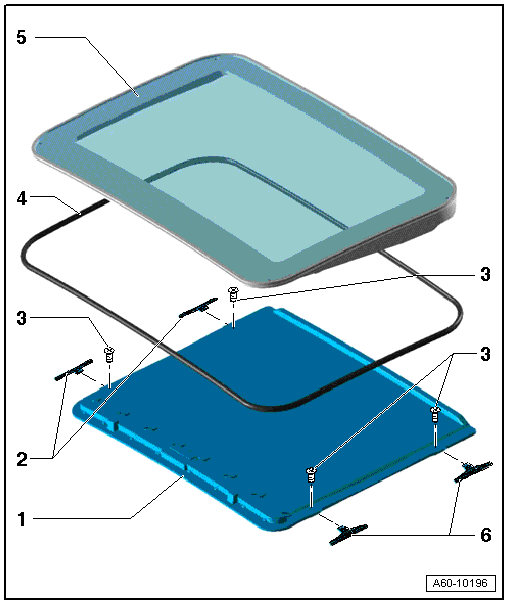

Fig 1: Exploded View Of Sliding Sunroof

Courtesy of AUDI OF AMERICA, LLC

Sliding Headliner
- Only for vehicles with sunroof.
- Remove sunroof panel before removing.
- Removing and Installing. Refer to SUN SHADE, REMOVING AND INSTALLING .
Right Sunroof Spring
- Remove headliner cover frame before removing. Refer to HEADLINER, REMOVING AND INSTALLING .
- To remove, remove the screw -7- at front and rear.
- Push front spring -2- forward and rear spring rearward, remove both from sliding headliner.
- Remove sliding headliner sideways from opposite guide rail and remove upward.
Bolt
- 1.5 Nm
Seal
- Replacing. Refer to SUNROOF SEALS, REMOVING AND INSTALLING, SEDAN .
Sunroof Panel
- Tilt sunroof panel to remove.
- Boot removed. Refer to BOOT, REMOVING AND INSTALLING .
- Remove the left and right bolts and then remove the sunroof panel upward.
- Adjusting. Refer to SUNROOF PANEL, ADJUSTING .
Left Sunroof Spring
