Attaching Points For The Frame
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

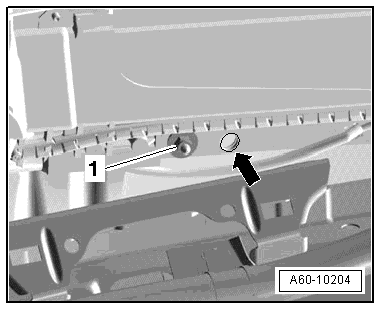

-- When installing the sliding sunroof, the frame must be attached at the front right side -arrow- from the first nut -1- with a 12 mm drill and...
-- ... the rear left side (oblong hole) -arrow- in front of the last screw -1- with a 10 mm drill.
-- Starting at the center and working from the front to the rear, tighten the nuts and screws to the tightening specification. Refer to OVERVIEW - SLIDING SUNROOF, SUNROOF FRAME .
