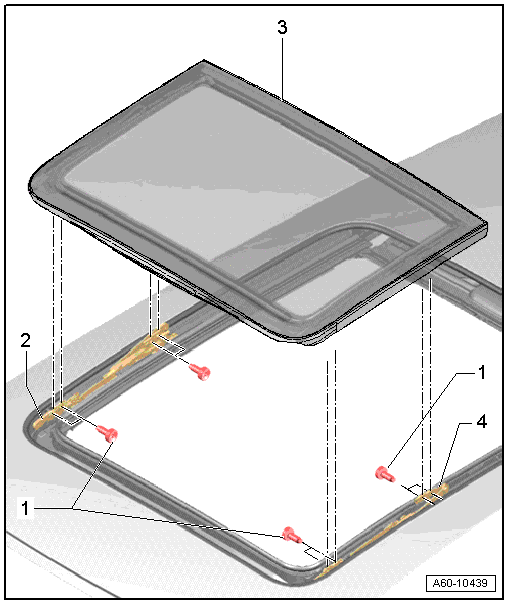

Sunroof Panel >>1<< For Panorama Sunroof, Removing And Installing,
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do Not Move Or Operate The Mechanical System With The Sunroof Panel Removed Otherwise It May Become Damaged.
NOTE:
Replace The Bolts For The Sunroof Panel Mounting If They Were Completely Removed.
- Bolt
- 7 Nm
- Front and rear, quantity: 2 on each side.
- Front Mount for Slotted Guide Rail
- No replacement part
- Slotted guide rail, adjusting. Refer to AVANT NEUTRAL POSITION .
- Sunroof panel >>1<<
-- Open the sunroof panel and remove the trim toward the rear.
-- Remove the rear bolts and then move the sunroof panel slightly to the rear.
-- Remove the front bolts and remove the sunroof panel upward.
-- Install in reverse order of removal.
- Adjusting the sunroof panel PANORAMA ROOF, ADJUSTING .
- Rear Mount for Slotted Guide Rail Guide
- No replacement part
- Slotted guide rail, adjusting. Refer to AVANT NEUTRAL POSITION .
