Valve Stem Seals, Removing And Installing, Cylinder Removed: Notes

Special tools and workshop equipment required

• Puller - Valve Seal :3364
• Seal Installer - Valve Stem :3365
• Valve Cotter Tool Kit :VAS5161A  with Valve Cotter Tool Kit - Guide Plate 19c :VAS5161/19C  or as an alternative Valve Cotter Tool Kit - Guide Plate 19B :VAS5161/19B
• Engine and Gearbox Bracket VAS6095A :VAS6095A
• Cylinder Head Tensioning Device :VAS6419

-- Remove the camshafts. Refer to CAMSHAFT, REMOVING AND INSTALLING .

-- Mark the allocation of the roller rocker lever and the hydraulic adjusting elements so they can be installed again.

-- If necessary, remove the roller rocker levers with the hydraulic adjusting elements and place them on a clean surface.

-- Insert the :VAS6419  in the :VAS6095A  .

Courtesy of AUDI OF AMERICA, LLC

-- Tension the cylinder head on the cylinder head tensioning device, as illustrated.

-- Connect the cylinder head tensioning device to the compressed air.

-- Slide the air cushion with the lever -arrow- under the combustion chamber onto the valve stem seal that will be removed.

-- Let enough compressed air flow into the air cushion until it contacts the valve plate.

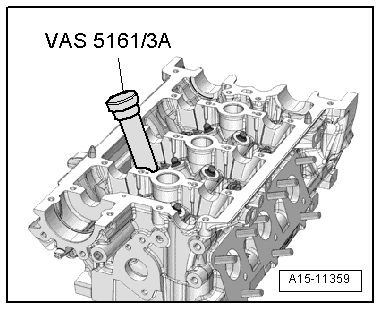

-- Position the :VAS5161/3A  on the valve spring plate and loosen the stuck valve retainers with a plastic mallet.

Courtesy of AUDI OF AMERICA, LLC

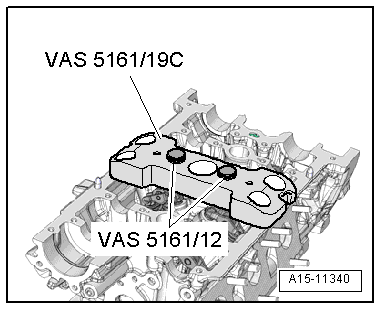

-- Place the :VAS5161/19C  on the cylinder head.

Courtesy of AUDI OF AMERICA, LLC

-- Secure the guide plate with the :VAS5161/12  .

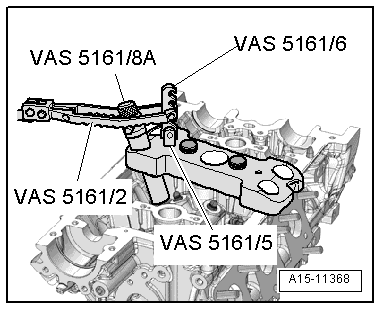

-- Install the :VAS5161/6  with the :VAS5161/5  in the guide plate.

Courtesy of AUDI OF AMERICA, LLC

-- Push the :VAS5161/8A  into guide plate.

-- Engage the :VAS5161/2  at the engaging device and press the installation cartridge downward.

-- At the same time, rotate the cartridge knurled screw right until points engage in valve retainers.

-- Move the knurled thumb screw back and forth slightly. This presses the valve retainers apart and captures them in the installation cartridge.

-- Release the pressure fork.

-- Remove the cartridge.

-- Unfasten guide plate and turn it aside.

-- Remove the valve spring and the valve spring plate.

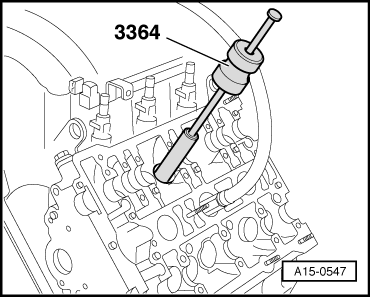

-- Remove the valve stem seal with the :3364  .

Courtesy of AUDI OF AMERICA, LLC

Courtesy of AUDI OF AMERICA, LLC

-- Lightly oil the valve stem seal.

-- Slide the valve stem seal onto the plastic sleeve.

-- Carefully press the valve stem seal onto the valve guide with the :3365  .

-- Remove the plastic sleeve again.

If the valve keepers were removed from the installation cartridge, they must be inserted into the :VAS5161/18  first.

Courtesy of AUDI OF AMERICA, LLC

• The large diameter of the valve retainers point upward.

-- Press installation cartridge from above onto valve retainer inserting tool and capture retainers.

-- Insert valve spring and valve spring plate.

Courtesy of AUDI OF AMERICA, LLC

• The tight spring coils -arrow- face toward cylinder head.

-- Attach the :VAS5161/19C  onto the cylinder head again.

Courtesy of AUDI OF AMERICA, LLC

-- Insert installation cartridge in guide plate.

-- Press the pressure fork down and pull the knurled screw up while turning left and right. This inserts the valve retainers.

-- Release the pressure fork with the knurled screw still raised.

-- Repeat the procedure on each valve.
