Tightening Specifications

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

The tight spring coils -arrow- face toward the cylinder head.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Replace the bolts that were tightened with an additional turn.

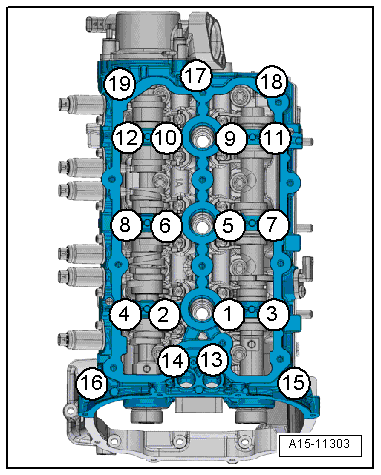

-- Tighten the bolts in steps in the sequence shown:

Step	Bolts	Tightening Specification/Additional Turn
1.	-1 to 19-	Install the bolts all the way in by hand The guide frame must touch the entire contact surface on the cylinder head.
2.	-1 to 19-	8 Nm
3.	-1 to 19-	Turn an additional 90°.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Replace the bolts that were tightened with an additional turn.

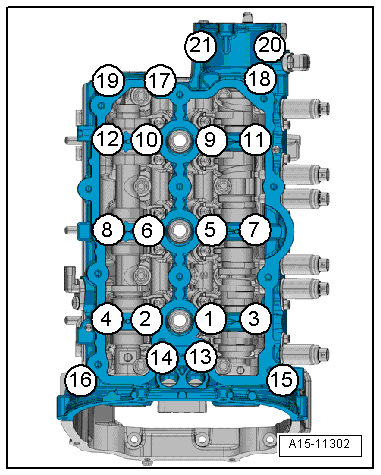

-- Tighten the bolts in steps in the sequence shown:

Step	Bolts	Tightening Specification/Additional Turn
1.	-1 to 21-	Install the bolts all the way in by hand The guide frame must touch the entire contact surface on the cylinder head.
2.	-1 to 21-	8 Nm
3.	-1 to 21-	Turn an additional 90°.
