Cylinder Bank 1 (right)

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the high pressure pump. Refer to HIGH PRESSURE PUMP, REMOVING AND INSTALLING .

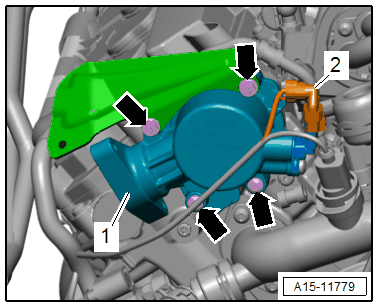

-- Disconnect the connector -2- on the Camshaft Position Sensor - G40-.

-- Remove the bolts -arrows- and the high pressure pump housing -1-.

-- Remove the Ground (GND) cable bolt -4-.

Courtesy of AUDI OF AMERICA, LLC

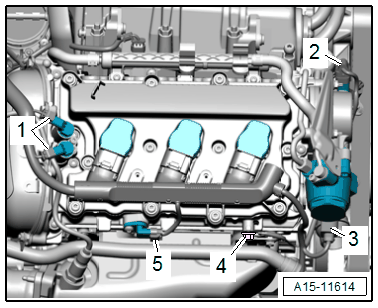

-- Disconnect the connectors from the cylinder head:

1 - For Camshaft Adjustment Valve 1 -N205- /Exhaust Camshaft Adjustment Valve 1 -N318-

5 - For Camshaft Position Sensor 3 -G300-

-- Move the electrical wiring harness to the side.

NOTE:

Ignore items -2 and 3-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

For better accessibility loosen the high pressure line on the fuel rail and on the bracket. Leave the high pressure line in the installation position.

-- Loosen the guide frame bolts in the following sequence: -19 to 1-.

-- Remove the bolts, carefully loosen the guide from out of the bond and place it with the camshafts on a soft surface.

-- Remove the :T40133/1 -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Mark the camshafts, remove them and lay them on a clean surface.

Cylinder Bank 2 (left)

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the guide frame bolts in the following sequence: -21 through 1-.

-- Remove the bolts, carefully loosen the guide from out of the bond and place it with the camshafts on a soft surface.

-- Remove the :T40133/2 -arrows-.

Courtesy of AUDI OF AMERICA, LLC
