Right Timing Chain Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

During installation, all cable ties must be installed at the same location.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the Heated Oxygen Sensor -G39-. Refer to Heated Oxygen Sensor -G39- /Oxygen Sensor after Three Way Catalytic Converter -G130-, REMOVING AND INSTALLING .

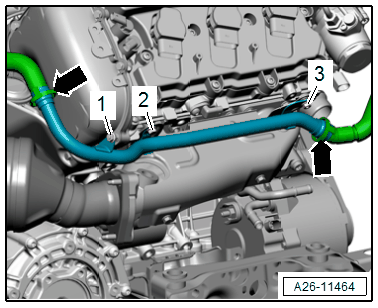

-- Press both the release buttons and disconnect the Secondary Air Injection (AIR) hoses -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -1 and 3- and the bolt -2- and move the secondary air injection pipe to the side.

-- Remove the right AIR combination valve from the cylinder head (refer to RIGHT COMBINATION VALVE, REMOVING AND INSTALLING ) move to the side.

NOTE:

Ignore item -2-.

-- Disconnect the connectors -1- for the Camshaft Adjustment Valve 1 -N205- and Exhaust Camshaft Adjustment Valve 1 -N318-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the electrical connectors -1 to 5- from the bracket and move to the side.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness on the right timing chain guard.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 through 8- and the bracket -arrows A and B-.

-- Carefully loosen the right timing chain cover for example with a scraper from the adhesive and remove.
