Overview - Cylinder Head: Notes

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The cylinder head for cylinder bank 2 (left) is shown in the illustration.

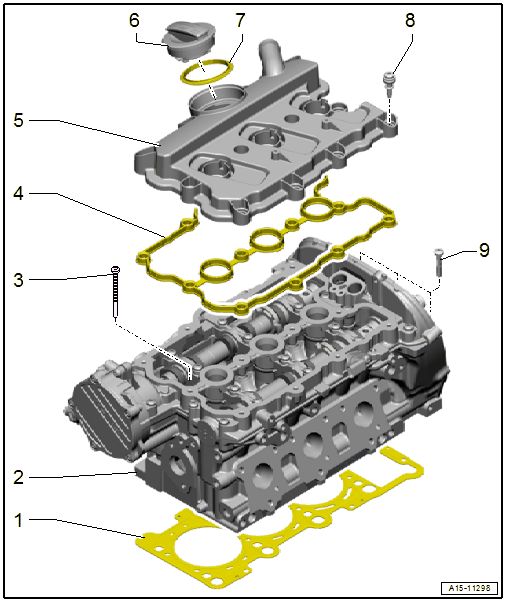

Fig 1: Cylinder Head Exploded View

Courtesy of AUDI OF AMERICA, LLC

Cylinder Head Seal
- Replacing. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- Installed position: the part number faces the cylinder head
- Change the coolant and engine oil after replacing
Cylinder Head
- Removing and installing. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- Check for distortion.
- Reworking dimension.
- Change the coolant and engine oil after replacing
Bolt
- Replace after removing
- Follow the sequence when loosening. Refer to CYLINDER HEAD BANK 1 (RIGHT), REMOVING AND INSTALLING
- Tightening specification and sequence. .
Seal
- For the cylinder head cover
- Replace if damaged or leaking
Cylinder Head Cover
- Removing and installing. Refer to CYLINDER HEAD COVER, REMOVING AND INSTALLING .
Cap
Seal
- Replace if damaged or leaking
Bolt
- Replace if the seal is damaged

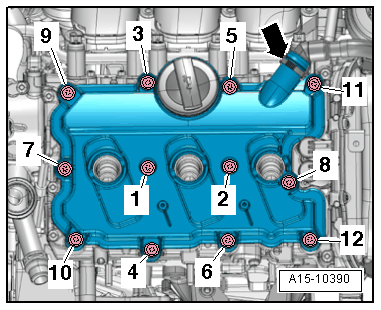

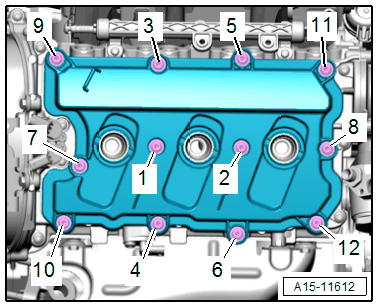

- Tightening specifications and sequence:
  - Refer to Figure
  - Refer to Figure
Bolt
- Tightening specification and sequence. .
