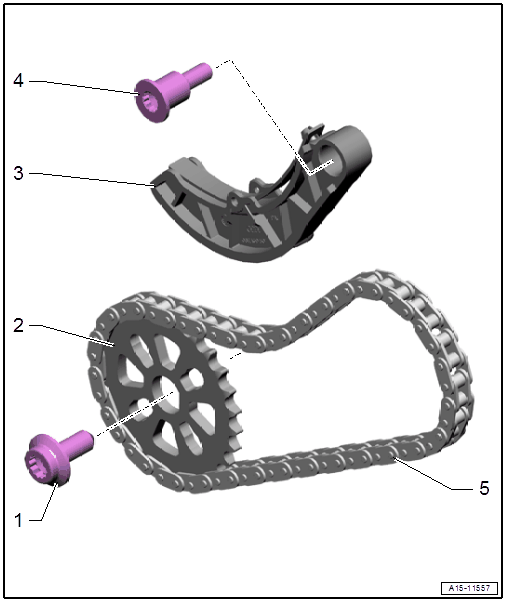

Overview - Oil Pump Drive Chain
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 30 Nm + 90°
- Replace after removing
- Drive Chain Sprocket
- For the oil pump
- Installed position: the side with the lettering faces the transmission
- Installation only possible in one position.
- Chain Tensioner
- With glide track
- Bolt
- 20 Nm
- Drive Chain
- For the oil pump
- Mark the running direction with paint for reinstallation
- Removing and installing. Refer to OIL PUMP DRIVE CHAIN, REMOVING AND INSTALLING .
