Overview -Left Camshaft Timing Chain
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

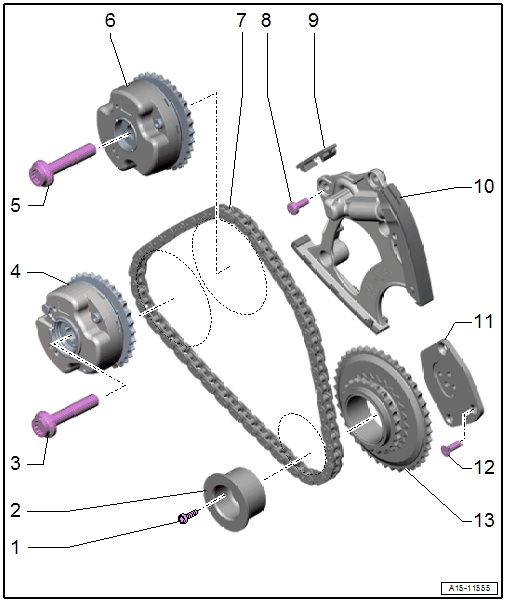

- Bolts
- Tightening specification -Item 4- OVERVIEW - TIMING MECHANISM DRIVE CHAIN.
- Bearing Pin
- Left camshaft timing chain drive sprocket
- Bolt
- 80 Nm + 90°
- Replace after removing
- Camshaft Adjuster
- For the exhaust camshaft
- Designation "EX"
- Removing and installing. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .
- Bolt
- 80 Nm + 90°
- Replace after removing
- Camshaft Adjuster
- For the intake camshaft
- Designation "IN"
- Removing and installing. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .
- Left Camshaft Timing Chain
- Mark the running direction with paint for reinstallation
- Remove from the camshafts. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .
- Removing and installing. Refer to CAMSHAFT TIMING CHAIN, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Glide
- Chain Tensioner
- For the left camshaft control chain
- Removing and installing. Refer to CAMSHAFT TIMING CHAIN, REMOVING AND INSTALLING .
- Bearing Plate
- For the drive chain sprocket
- Bolt
- Tightening specification -Item 8- OVERVIEW - TIMING MECHANISM DRIVE CHAIN.
- Drive Chain Sprocket
- For the left camshaft control chain
