Overview - Right Camshaft Timing Chain
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

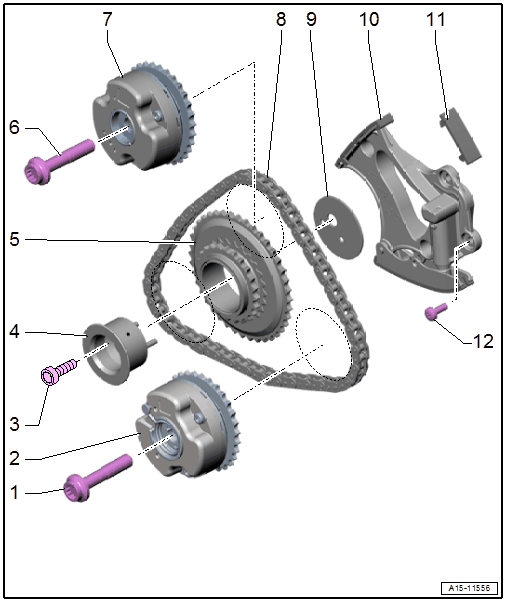

- Bolt
- 80 Nm + 90°
- Replace after removing
- Camshaft Adjuster
- For the exhaust camshaft
- Designation "EX"
- Removing and installing. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .
- Bolt
- Tightening specification -Item 11- OVERVIEW - TIMING MECHANISM DRIVE CHAIN.
- Bearing Pin
- For the right camshaft timing chain drive sprocket
- Asymmetrical version
- Installed position.
- Drive Chain Sprocket
- For the right camshaft timing chain
- Installed position.
- Bolt
- 80 Nm + 90°
- Replace after removing
- Camshaft Adjuster
- For the intake camshaft
- Designation "IN"
- Removing and installing. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .
- Right Camshaft Timing Chain
- Mark the running direction with paint for reinstallation
- Remove from the camshafts. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .
- Removing and installing. Refer to CAMSHAFT TIMING CHAIN, REMOVING AND INSTALLING .
- Thrust Washer
- For the right camshaft timing chain drive sprocket
- Asymmetrical version
- Installed position.
- Chain Tensioner
- For the right camshaft timing chain
- Removing and installing. Refer to CAMSHAFT TIMING CHAIN, REMOVING AND INSTALLING .
- Glide
- Bolt
- 9 Nm
