Oil Pump Drive Chain, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- The transmission is removed:
- Refer to TRANSMISSION, REMOVING AND INSTALLING [For transmission(s) 0CK] .
- Refer to TRANSMISSION, REMOVING AND INSTALLING [For transmission(s) 0BK] .
-- Remove the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

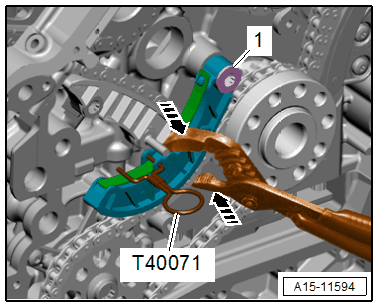

-- Push down the chain tensioner spring with pliers in direction of -arrows- and lock with the :T40071 .
CAUTION:
Risk of destroying due to reversed running direction on a used drive chain.
- Mark the drive chain running direction with arrows using paint for installation later. Do not mark the drive chain with a punch, notch or something similar.
-- Remove the bolt -1- and the chain tensioner.

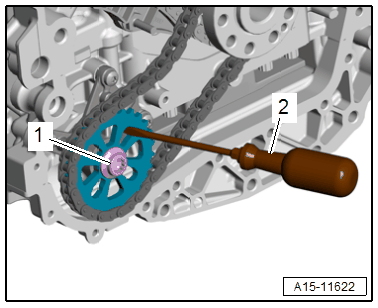

-- Counterhold the chain sprocket with a screwdriver -2- and remove the bolt -1-.
-- Remove the drive chain with the chain sprocket.
