Camshaft Timing Chain, Removing And Installing: Installing

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the tensioner was removed from the chain tensioner, then pay close attention to the installed position: the hole in the bottom of the housing faces the chain tensioner and the piston faces the tensioning rail.

Replace the bolts that were tightened with an additional turn.

CAUTION:

Risk of damaging valves and piston crowns.

If camshafts are rotated, crankshaft may not rest with any piston at "Top Dead Center (TDC)".

-- Install the left camshaft timing chain on the drive chain sprocket according to marking that was made earlier when it was removed and guide it upward toward the cylinder head.

Courtesy of AUDI OF AMERICA, LLC

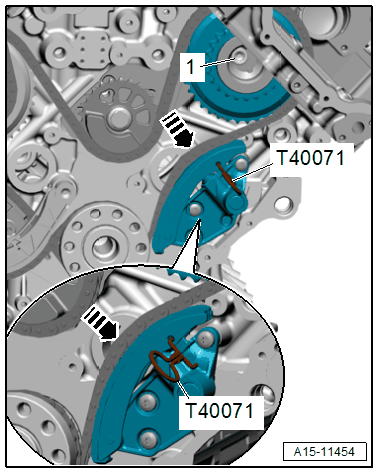

-- Press the guide rail for the left camshaft timing chain tensioner down and secure the chain tensioner using a :T40071 .

-- Install the right camshaft timing chain on the drive chain sprocket according to marking that was made earlier when it was removed and guide it upward toward the cylinder head.

Courtesy of AUDI OF AMERICA, LLC

-- Install the drive chain sprocket. .

-- Tighten the drive chain sprocket mounting pin bolt -1-.

-- Remove the :T40071 .

NOTE:

Ignore -arrow-.

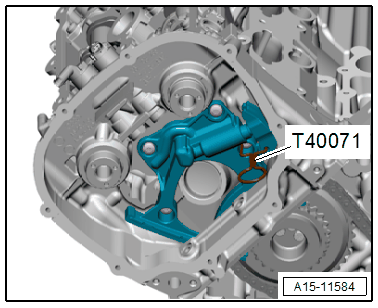

-- Install the chain tensioner on the right cylinder head.

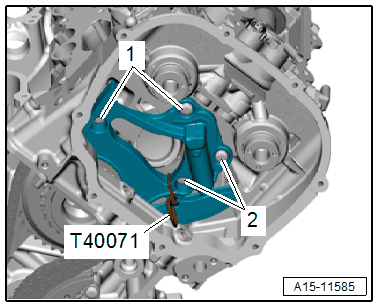

-- Tighten the bolts -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

Installation is performed in reverse order of removal, while noting the following:

-- Position the camshaft timing chain on the camshafts. Refer to Installing .

-- Install the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .
