Overview - Oil Pan/Oil Pump

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: gh

If large quantities of metal particles or abraded material are detected during engine repairs, it may mean the crankshaft or rod bearings are damaged. To prevent damage, perform the following steps after completing the repair; carefully clean the oil channels and replace the oil spray jets, the oil cooler and the oil filter.

Oil capacities, oil specifications and viscosity classes. Refer to the MODEL YEAR: 2018 (UNITED STATES) .

Oil injector jet for piston cooling. Refer to Fig 1.

Fig 1: Exploded View Of Oil Spray Jet And Bolt

Courtesy of AUDI OF AMERICA, LLC

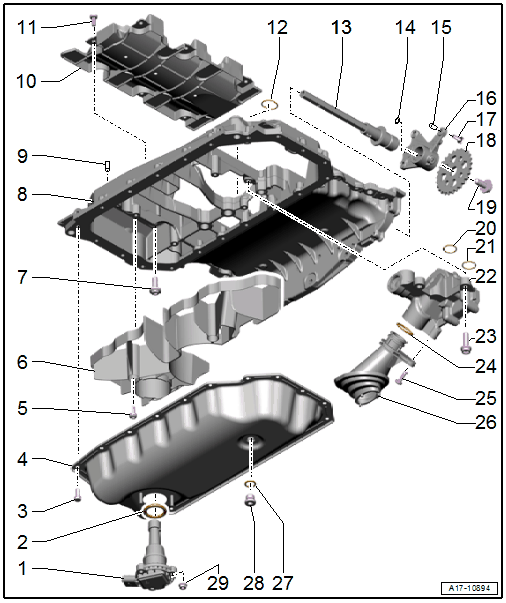

Fig 2: Exploded View Of Oil Pan/Oil Pump

Courtesy of AUDI OF AMERICA, LLC

Oil Level Thermal Sensor -G266-
- Removing and installing. Refer to Oil Level Thermal Sensor -G266-, REMOVING AND INSTALLING .
Seal
- Replace after removing
Bolt
- Replace after removing
- Tightening specification and sequence. Refer to Fig 3.
Oil Pan Lower Section
- Removing and installing. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .
Bolt
- 9 Nm
Lower Oil Baffle
Bolt
- Replace after removing
- Tightening specification and sequence. Refer to Fig 4.
Oil Pan Upper Section
- Removing and installing. Refer to OIL PAN UPPER SECTION, REMOVING AND INSTALLING .
Alignment Sleeve
- Quantity: 2
Upper Oil Baffle
Bolt
- 3 Nm + 90°
- Replace after removing
- Install with locking compound. Refer to the parts information for the locking compound.
Seal
- Insert into guide frame
- Replace after removing
Oil Pump Driveshaft
O-ring
- Replace after removing
Sleeve
- Quantity: 2
Bracket
Bolt
- 9 Nm
Chain Sprocket for Oil Pump
- Can only be placed onto driveshaft in one position
Bolt
- 3 Nm + 90°
- Replace after removing
O-ring
- Replace after removing
Seal
- Replace after removing
Oil Pump
- Do not disassemble
- Removing and installing. Refer to OIL PUMP, REMOVING AND INSTALLING .
Bolt
- 20 Nm
O-ring
- Replace after removing
Bolt
- 9 Nm
Intake Tube
- For the oil pump
Seal
- Replace after removing
Oil Drain Plug
- 30 Nm
Nut
- 9 Nm

Fig 3: Oil Level Thermal Sensor And Oil Pan

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Replace the bolts that were tightened with an additional turn.

-- Tighten bolts in stages as follows:

Step	Tightening Specification/Additional Turn
1.	8 Nm diagonally
2.	in a diagonal sequence, turn an additional 90°

Fig 4: Oil Pan Upper Section Bolt Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -1 through 6- in a diagonal sequence in stages to 20 Nm:

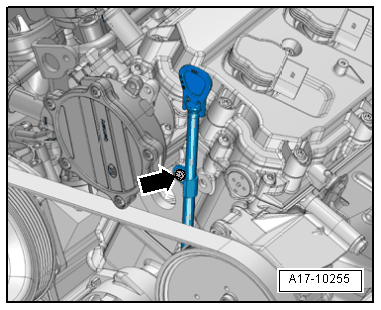

Fig 5: Oil Dipstick Guide Tube Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolt -arrow- to 9 Nm.
