Crankcase Ventilation Shut-Off Valve -N548-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
During installation, all cable ties and heat shields must be installed at the same location.
The Crankcase Ventilation Shut-Off Valve -N548- and the connecting hose to the oil separator are one component and cannot be removed separately.
-- Remove the supercharger. Refer to SUPERCHARGER, REMOVING AND INSTALLING .

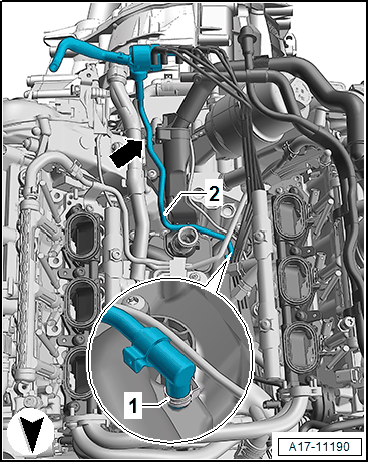

-- If installed, open the clamp -1- and remove the crankcase ventilation hose -2- from the oil separator -magnified area- and unclip at the bracket -arrow-.
-- Remove the Crankcase Ventilation Shut-Off Valve -N548- with the crankcase ventilation hose -2-.
