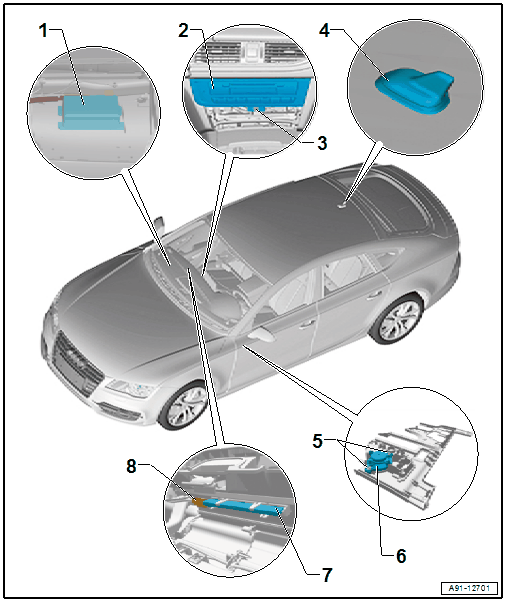

Component Location Overview - Mobile Online Services, EUROPE/Rest Of World/RUSSIA, IW3/IW1
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Control Module for Emergency Call Module and Communication Unit -J949-
- Connector Assignment. Refer to the Appropriate Wiring Diagram.
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- Connector Assignment. Refer to the Appropriate Wiring Diagram.
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Roof Antenna -R216-
- GPS Antenna -R50-
- Removing and Installing. Refer to Roof Antenna -R216-, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 2
- Emergency Call Module Speaker -R335-
- Removing and Installing. Refer to Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING .
- Emergency Call Module Antenna -R263-
- Removing and Installing. Refer to EMERGENCY MODULE ANTENNA, REMOVING AND INSTALLING .
- Connector
- Refer to the Appropriate Wiring Diagram.
