MULTIFUNCTION Buttons, Removing And Installing, 3-Spoke Steering Wheel: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the driver airbag. Refer to DRIVER SIDE AIRBAG .

-- Remove the connecting wires from the guides in the steering wheel.

-- Loosen the trim panel -2- with the multifunction buttons by hand -arrows- and remove it approximately 5 mm from the steering wheel -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the multifunction buttons -2- with the : 3409 next to the catches -3-. Use the :3409 as shown in the illustration.

Courtesy of AUDI OF AMERICA, LLC

-- While doing this, be careful of the connectors to the tiptronic switches -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connector -2- from the multifunction buttons.

-- Remove the decorative trim with the multifunction buttons from the steering wheel.

The multifunction buttons are attached to the decorative trim.

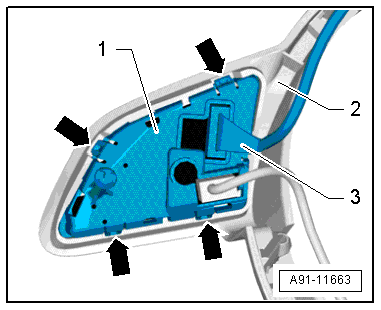

-- Disconnect and remove the connector -3- from the multifunction button -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Open the clips -arrows- and push the multifunction button -1- out of the trim -2-.

The additional wire on the right multifunction button remains on the button.
