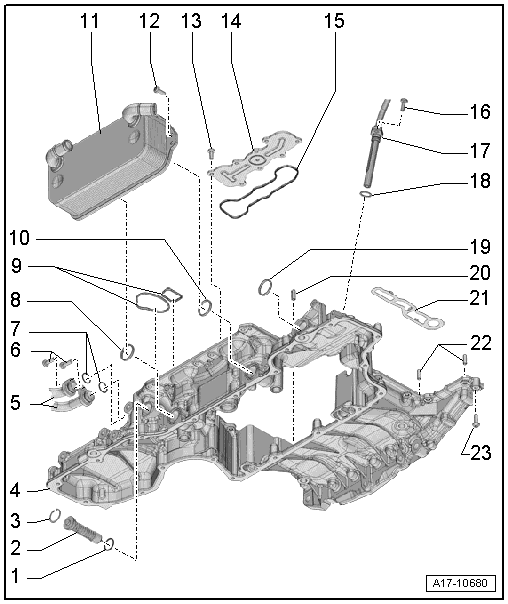

Oil Pan Upper Section: Notes
WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
- O-Ring
- Always replace
- For Audi RS6/RS7
- Thermostat
- For Audi RS6/RS7
- Comprised of a thermal element, spring and cover
- Circlip
- For the temperature regulator
- For Audi RS6/RS7
- Oil Pan Upper Section
- Removing and Installing. Refer to OIL PAN UPPER SECTION, REMOVING AND INSTALLING .
- Oil lines
- For Audi RS6/RS7
- Bolts
- 9 Nm
- For Audi RS6/RS7
- O-rings
- Always replace
- For Audi RS6/RS7
- O-Ring
- Always replace
- Seals
- Always replace
- O-Ring
- Always replace
- Front Engine Oil Cooler
- Removing and Installing. Refer to ENGINE OIL COOLER, REMOVING AND INSTALLING, FRONT .
- Change the coolant after replacing
- Bolt
- Tightening specification, refer to -item 2-.
- Bolt
- 8 Nm
- Cap
- Seal
- Always replace
- Bolt
- 9 Nm
- Guide Tube
- For the oil dipstick
- O-Ring
- Always replace
- O-Ring
- Always replace
- Alignment Pin
- Seal
- Always replace
- Alignment Pins
- Bolt
- Tightening specification and sequence. Refer to Figure.
