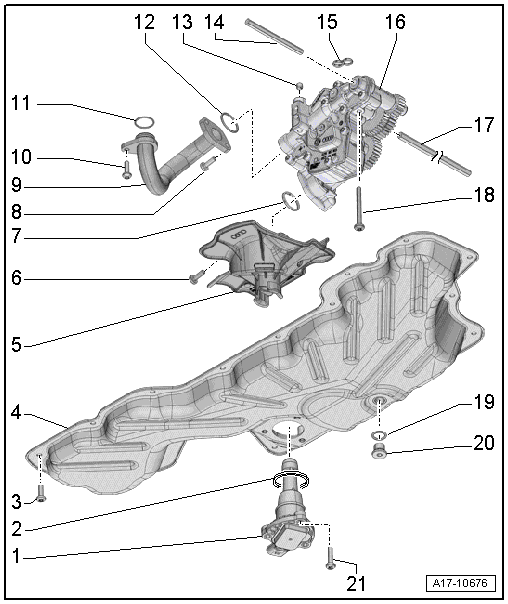

Oil Pan Lower Section/Oil Pump: Notes
WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
- Oil Level Thermal Sensor -G266-
- Removing and Installing. Refer to Oil Level Thermal Sensor -G266-, REMOVING AND INSTALLING .
- Seal
- Always replace
- Bolt
- Tightening specification and sequence. Refer to Figure
- Always replace
- Oil Pan Lower Section
- Removing and Installing. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .
- Intake Tube
- For the oil pump
- Bolt
- 9 Nm
- O-Ring
- Always replace
- Bolt
- 8 Nm + 90°
- Always replace
- Oil Pipe
- Removing and Installing. Refer to OIL PUMP, REMOVING AND INSTALLING .
- Bolt
- 8 Nm + 90°
- Always replace
- O-Ring
- Always replace
- Seal
- Always replace
- Alignment Sleeve
- Quantity: 2
- Input Shaft
- For the coolant pump
- Seal
- Always replace
- Oil Pump
- Do not disassemble
- With relief valve
- Removing and Installing. Refer to OIL PUMP, REMOVING AND INSTALLING .
- Input Shaft
- For the oil pump
- Bolt
- 8 Nm + 90°
- Always replace
- Seal
- Always replace
- Oil Drain Plug
- 20 Nm
- Bolt
- 9 Nm
