Camshaft, Removing And Installing: Removing: Notes

WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the affected ignition coils. Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .

-- Remove the affected high pressure pump. Refer to HIGH PRESSURE PUMP, REMOVING AND INSTALLING .

-- Remove the affected high pressure pipe. Refer to HIGH PRESSURE PIPE, REMOVING AND INSTALLING .

-- Remove the affected camshaft timing chain from camshafts. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .

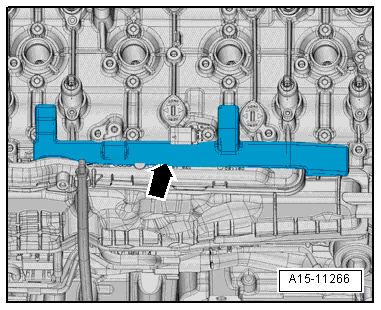

-- Remove the noise insulation -arrow-.

Courtesy of AUDI OF AMERICA, LLC

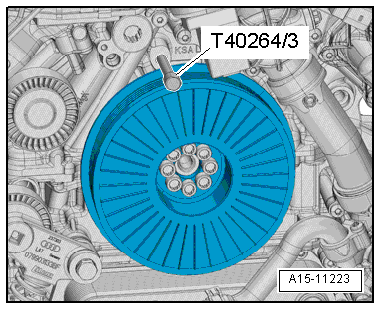

-- Remove the :T40264/3 .

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging valves and piston crowns.

In the course of the following steps, the crankshaft must not stand with any piston at "TDC".

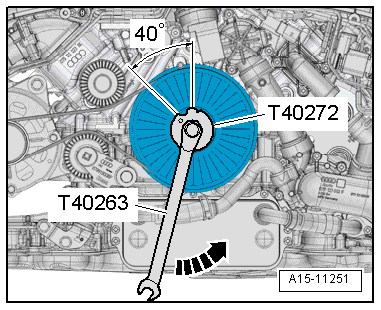

-- Turn the crankshaft 40° opposite engine rotation out of the "TDC" position using the :T40263 and :T40272 -arrow-.
