Overview - Timing Chain Cover: Notes

WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

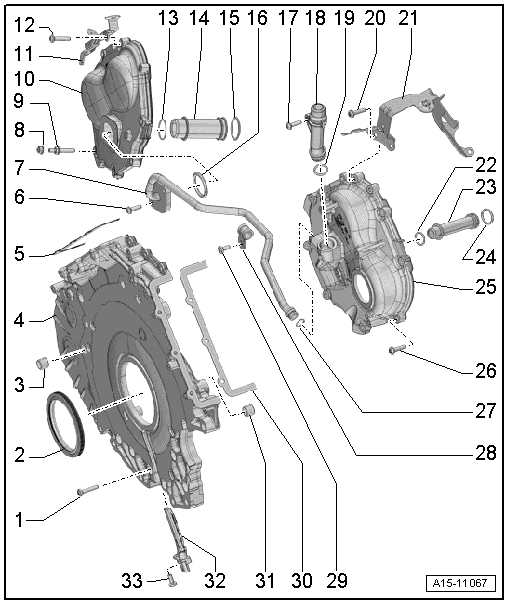

Fig 1: Timing Chain Cover Exploded View
GWWA15-11067Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
  2. Shaft Seal
  3. Alignment Sleeve
    • Quantity: 2
  4. Lower Timing Chain Cover
  5. Left Cylinder Head Gasket
  6. Bolt
  7. Upper Rear Coolant Pipe
  8. Nut
    • 9 Nm
  9. Double Bolt
    • Tightening specification and sequence. Refer to appropriate service information. .
    • Always replace
  10. Left Timing Chain Cover
  11. Bracket
    • Illustration does not correspond to version in vehicle
  12. Bolt
    • Tightening specification and sequence. Refer to appropriate service information. .
    • Always replace
  13. O-Ring
    • Always replace
  14. Left Connecting Pipe
    • Remove using a drift
  15. O-Ring
    • Always replace
  16. O-Ring
    • Always replace
  17. Bolt
    • 9 Nm
  18. Connection
    • For coolant
  19. O-Ring
    • Always replace
  20. Bolt
    • Tightening specification and sequence. Refer to appropriate service information. .
    • Always replace
  21. Bracket
  22. O-Ring
    • Always replace
  23. Right Connecting Pipe
    • Remove using a drift
  24. O-Ring
    • Always replace
  25. Right Timing Chain Cover
  26. Bolt
    • Tightening specification and sequence. .
    • Always replace
  27. O-Ring
    • Always replace
  28. Clamp
  29. Bolt
  30. Right Cylinder Head Gasket
  31. Alignment Sleeve
    • Quantity: 2
  32. Engine Speed Sensor -G28-
  33. Bolt
