Overview - Cylinder Head: Notes
WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

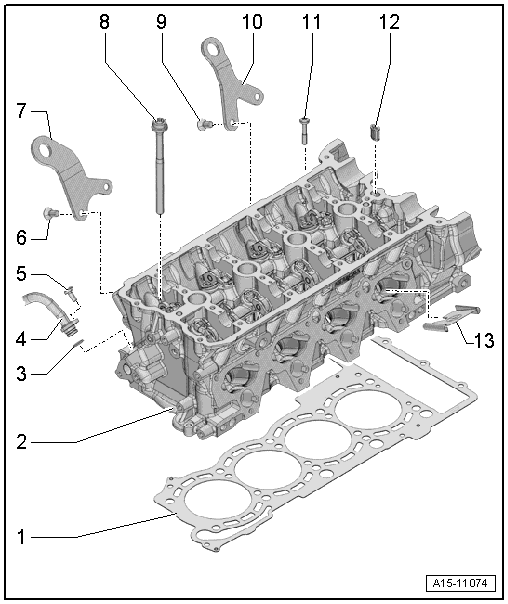

The cylinder head for cylinder bank 2 (left) is shown in the illustration.
- Cylinder Head Gasket
- Always replace. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- Installed position: Parts number to cylinder head
- Change the coolant and engine oil after replacing
- Cylinder Head
- Removing and installing. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- Check for distortion.
- Reworking dimension.
- Change the coolant and engine oil after replacing
- O-Ring
- Always replace
- Front Coolant Pipe
- Removing and installing. Refer to FRONT COOLANT PIPE, REMOVING AND INSTALLING .
- Bolt
- Tightening specification -Item 17- OVERVIEW - COOLANT PIPES .
- Bolt
- 22 Nm
- Engine Lifting Eye
- Bolt

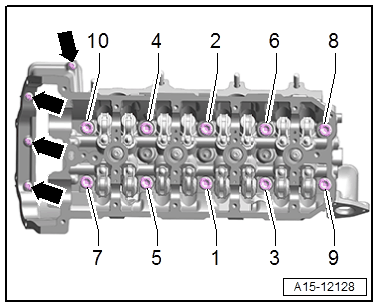

- Tightening specification and sequence. .
- Always replace
- Loosening sequence. Refer to CYLINDER HEAD BANK 2 (LEFT), REMOVING
- Bolt
- 22 Nm
- Engine Lifting Eye
- Bolt
- Tightening specification and sequence. .
- Always replace
- Loosening sequence. Refer to CYLINDER HEAD BANK 2 (LEFT), REMOVING
- Oil Screen
- Clean
- Partition Plate
Cylinder Head Bank 1 (Right)
Cylinder Head Bank 2 (Left)
